INSPECTION PROCEDURE 4: Front And/Or Rear Passenger's Power Window(s) Do Not Work By Means Of The Power Window Main Switch: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

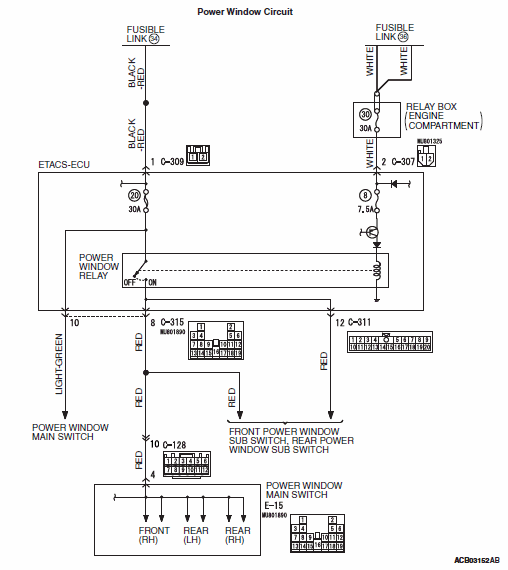

Fig 1: Power Window Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
