INSPECTION PROCEDURE 4: A Door Cannot Be Locked Or Unlocked By The Central Door Locking System: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

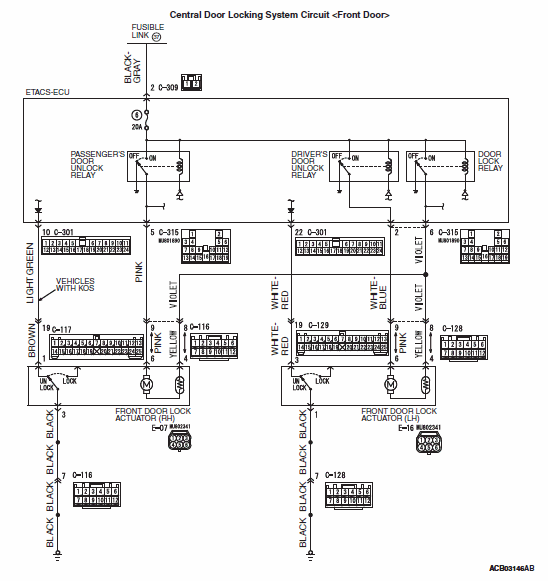

Fig 1: Central Door Locking System Circuit Diagram - Front Door

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

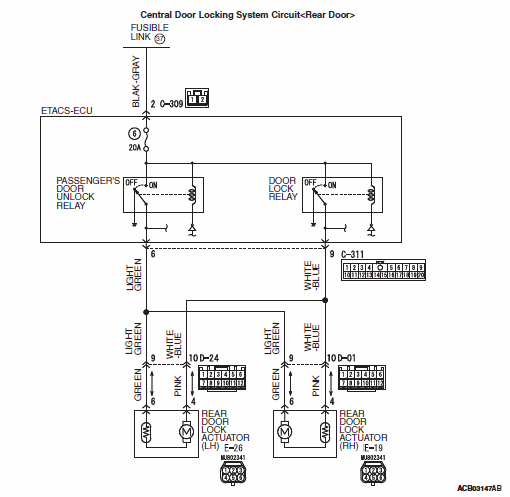

Fig 2: Central Door Locking System Circuit Diagram - Rear Door

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

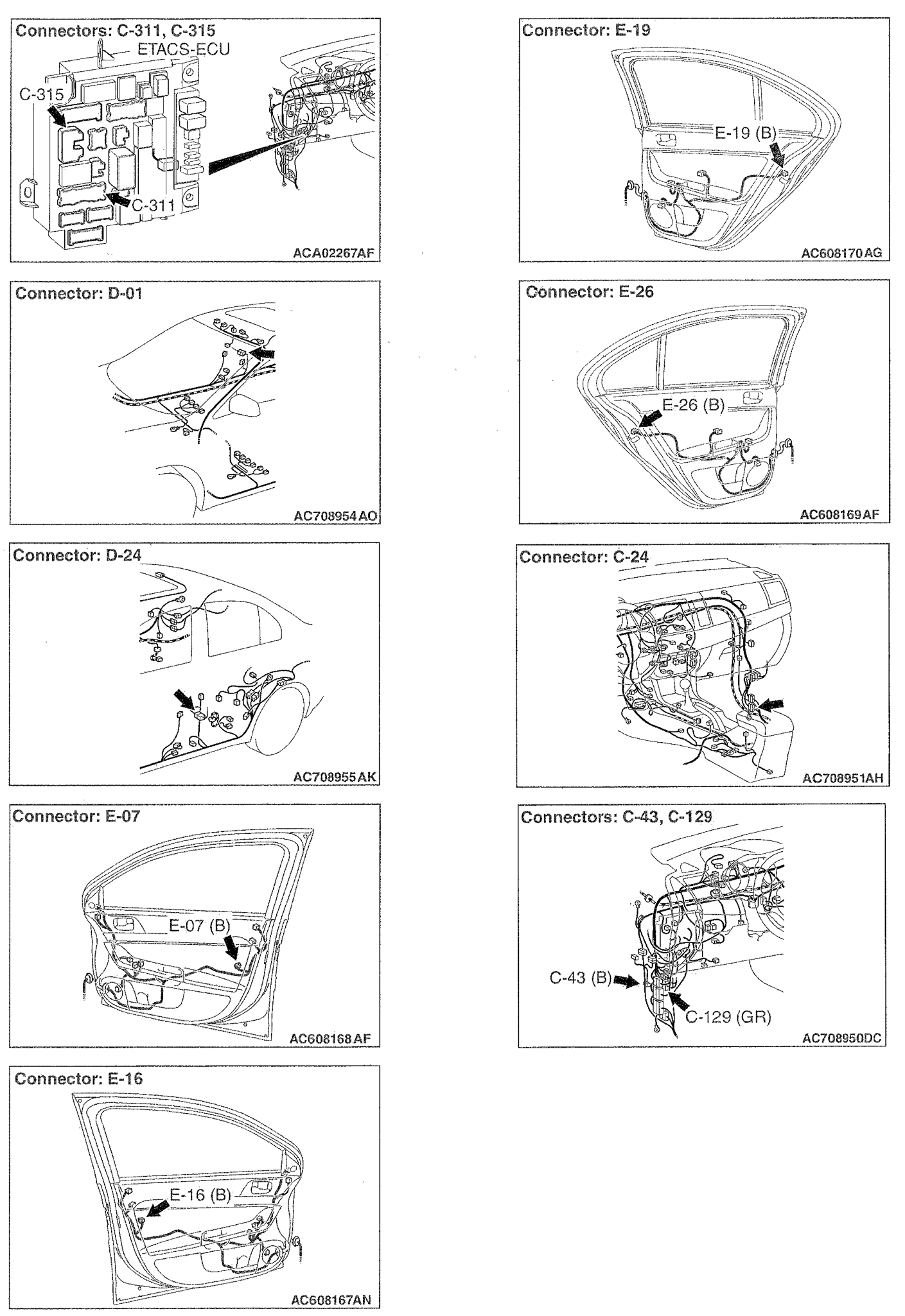

Fig 3: Connectors: C-24, C-43, C-129, C-311, C-315, D-01, D-24, E-07, E-16, E-19, E-26

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
