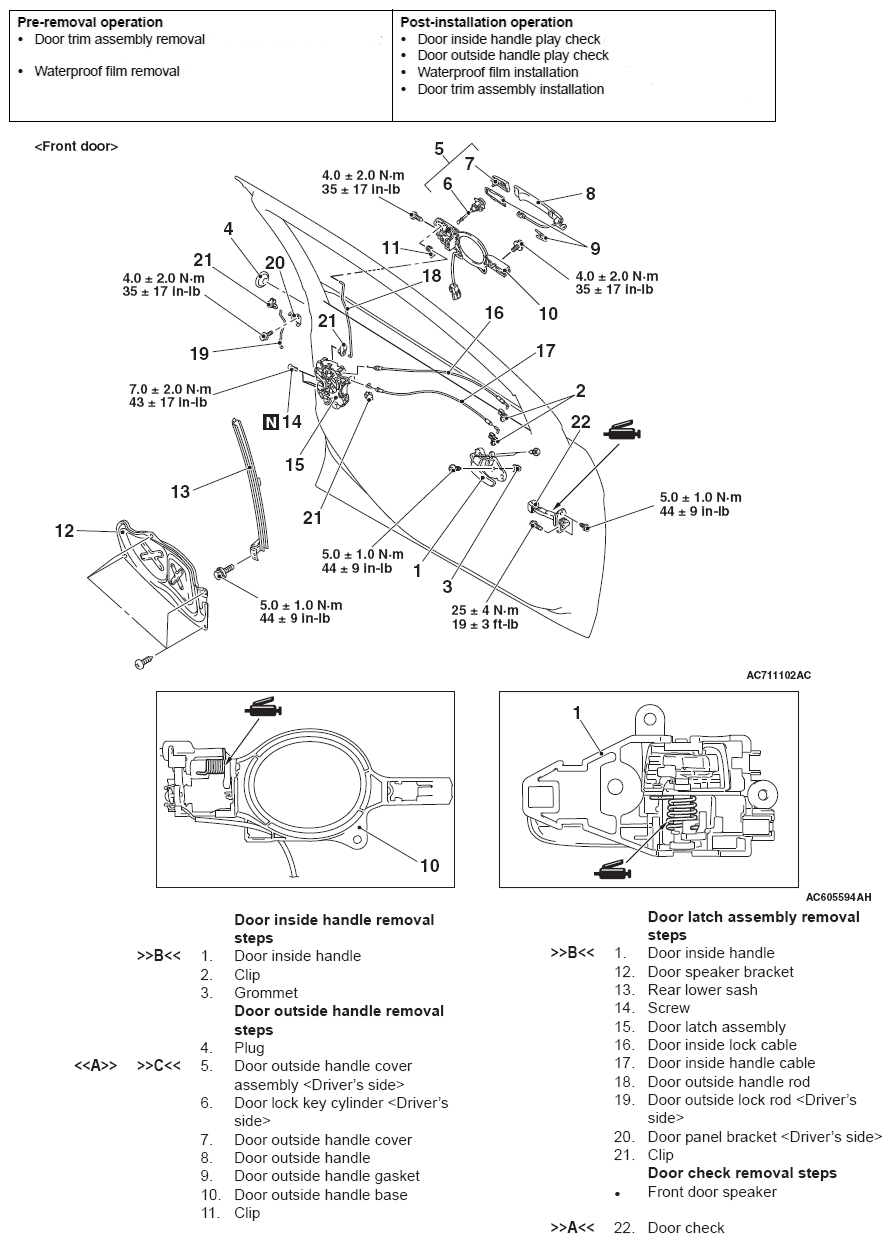

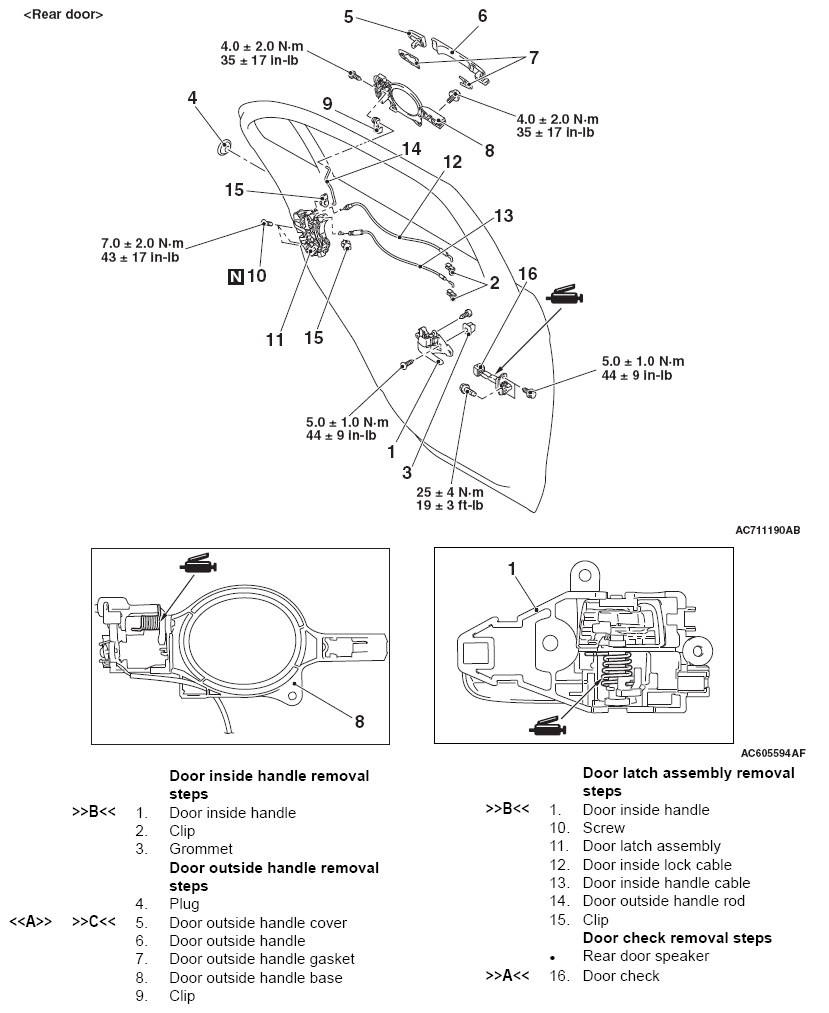

Removal And Installation: Notes
WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When the door lock cylinder of the vehicle with WCM is replaced as a full service key set, the key must be registered with the barcode No. attached to the ignition key. (Refer to
ID CODE REGISTRATION CRITERIA TABLE
).
Required Special Tool:
- T-type Long Torx Wrench (T30)
