Removal And Installation: Battery

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When installing the battery, securely connect the exhaust battery cover hose.

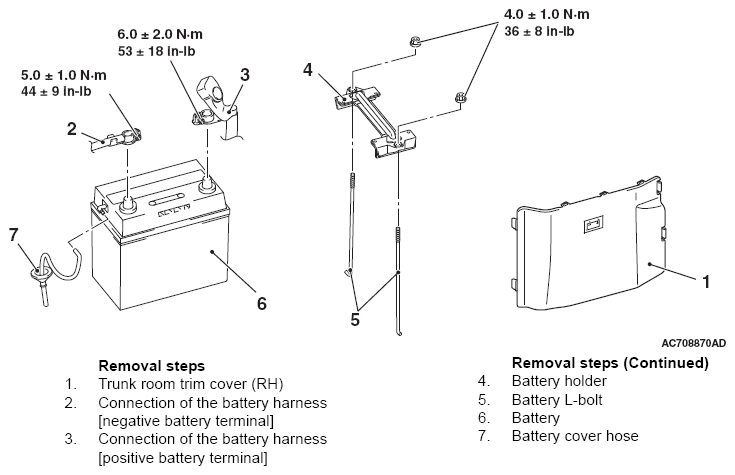

Fig 1: Battery Components With Torque Specifications
G06678014Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
