Inspection Procedure 1: Power Supply Circuit Check: Notes
WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

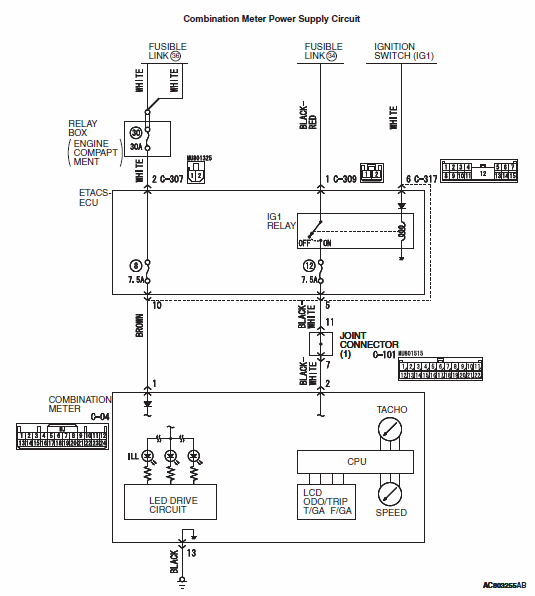

Fig 1: Combination Meter Power Supply Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

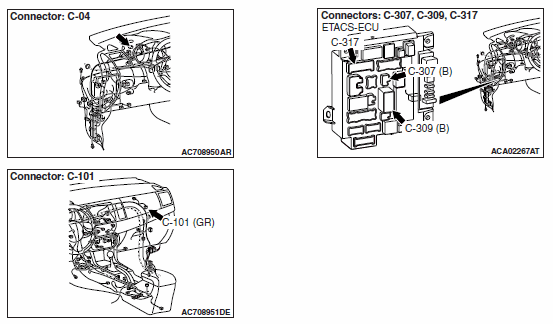

Fig 2: Locating Combination Meter Power Supply Connectors
