DTC B1201: Abnormal Fuel Information: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
Fig 1: Fuel Gauge Unit Circuit Diagram
G00527939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

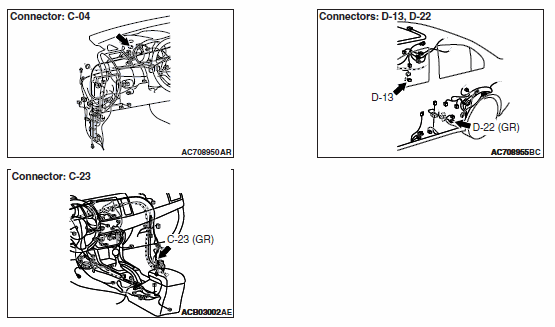

Fig 2: Locating Fuel Gauge Unit Connectors
G00527940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
