Inspection Procedure 2: With The Parking Brake Released, The Brake Warning Light Remains Illuminated (ABS Warning Light Is Turned Off): Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

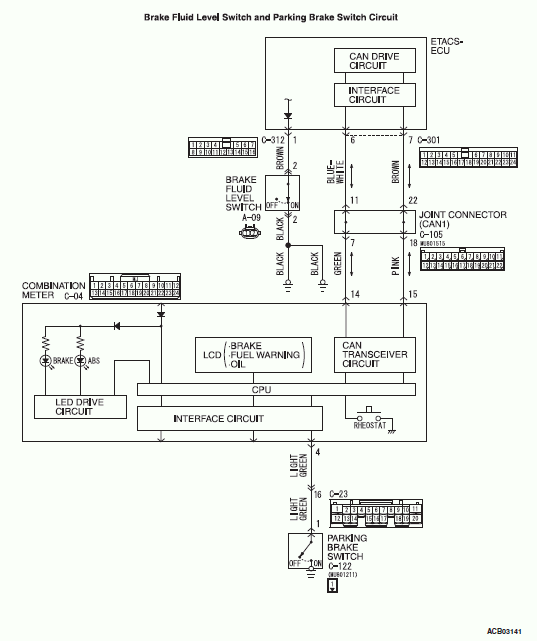

Fig 1: Brake Fluid Level Switch And Parking Brake Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

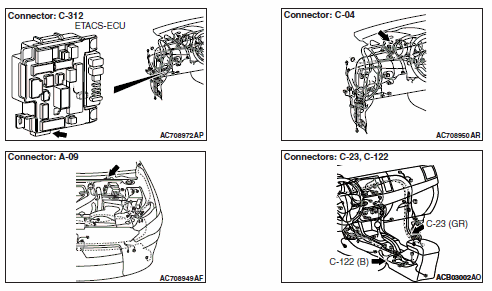

Fig 2: Brake Fluid Level Switch And Parking Brake Switch Circuit Connector Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines. Refer to EXPLANATION ABOUT THE SCAN TOOL (M.U.T.-III) CAN BUS DIAGNOSTICS .
Whenever the ECU is replaced, ensure that the communication circuit is normal.
