>>A<< Vacuum Hose Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Align the mark as shown in the illustration to assemble the vacuum hose.

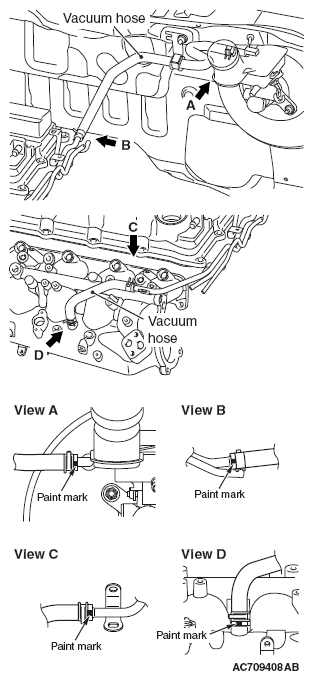

Fig 1: Aligning Marks Of Vacuum Hose
G06677681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
