Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

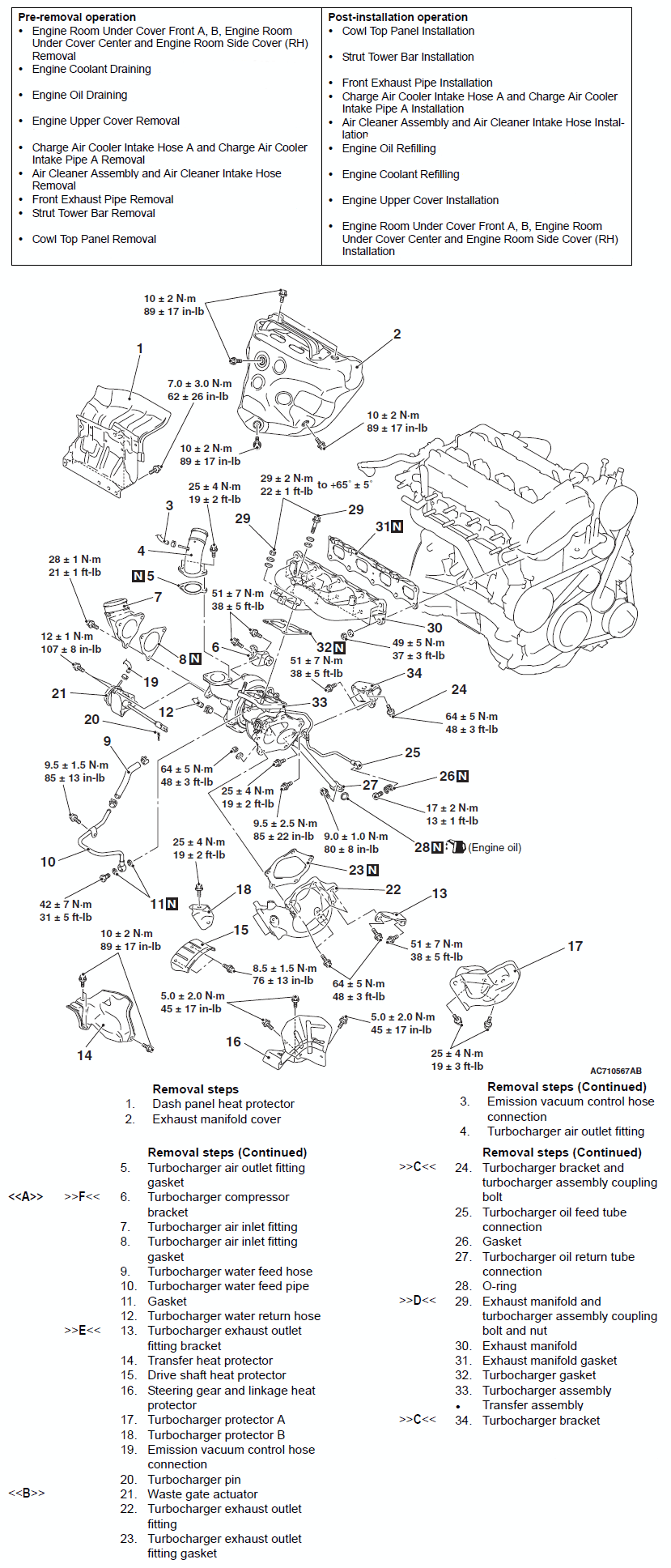

Fig 1: Removing/Installing Exhaust Manifold & Turbocharger Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

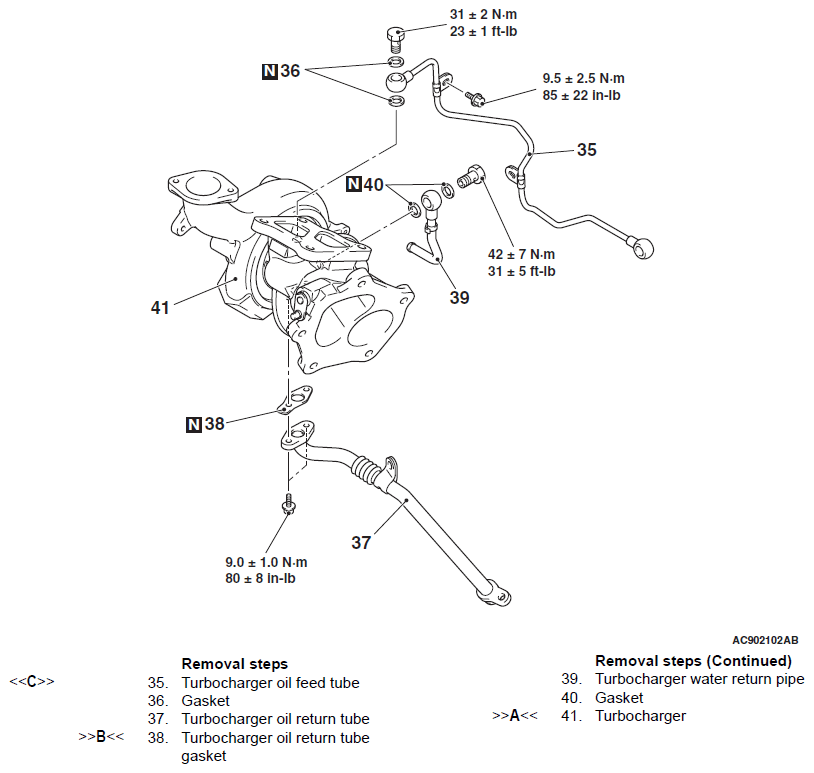

Fig 2: Removing/Installing Turbocharger, Turbocharger Oil Return Tube & Gasket With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB992274: Palm Socket
MB991614: Angle Gauge
