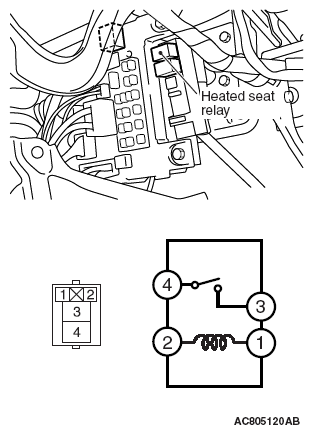

Heated Seat Relay Continuity Check
WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
HEATED SEAT RELAY CONTINUITY REFERENCE CHART
| Battery voltage |
Tester connection |
Specified condition |
| Not applied |
3 - 4 |
Open circuit |
- Connect terminal 2 to the positive battery terminal
- Connect terminal 1 to the negative battery terminal
|
Continuity exists (2Ω or less) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
