Inspection Procedure 4: ETACS-ECU Does Not Receive Any Signal From The Front Door Lock Actuator: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

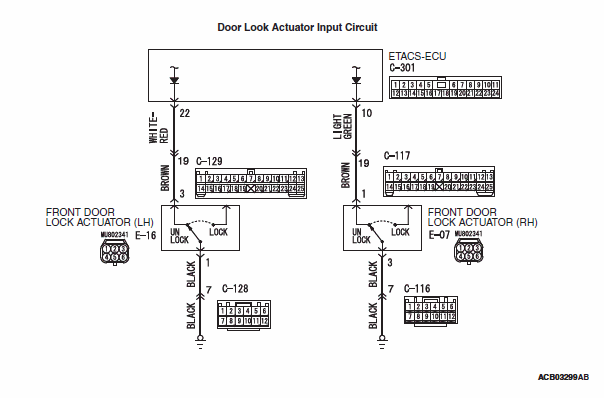

Fig 1: Door Look Actuator Circuit Diagram
G00528528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

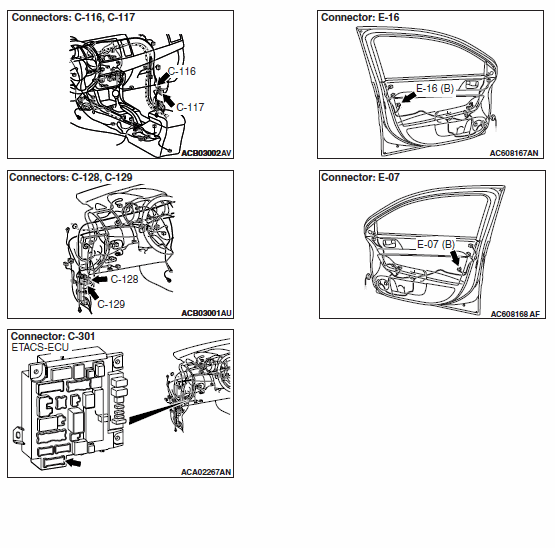

Fig 2: Locating Door Look Actuator Connectors
G00528529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
