Inspection Procedure 8: No Door Will Be Locked Or Unlocked By Operating A Lock Switch On Any Door: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

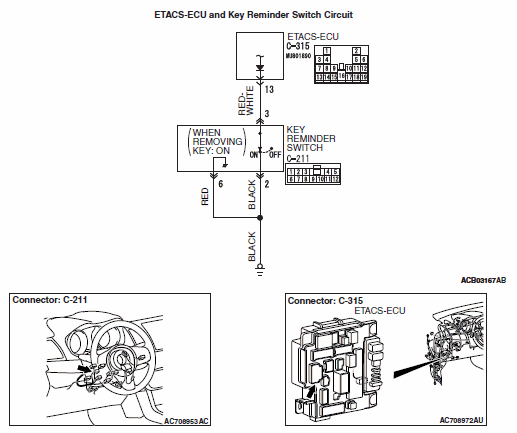

Fig 1: ETACS-ECU And Key Reminder Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
