Inspection Procedure 3: Abnormality In KOS-ECU Power Supply And Ground Circuits: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

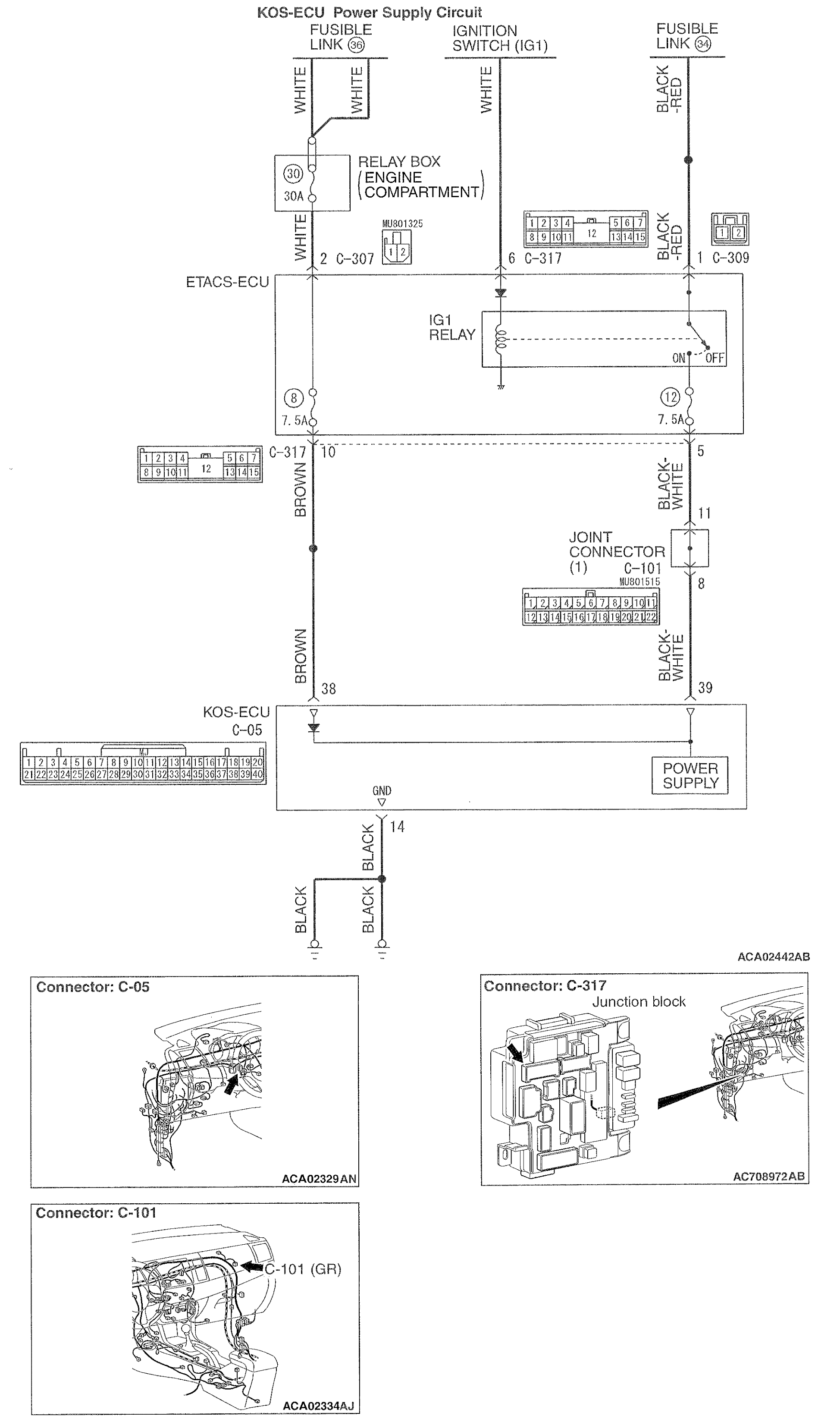

Fig 1: KOS-ECU Power Supply Circuit Diagram
G00505446Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
