DTC B240D: Front Antenna (Indoor) Open: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When replacing the ECU, always check that the communication circuit is normal.

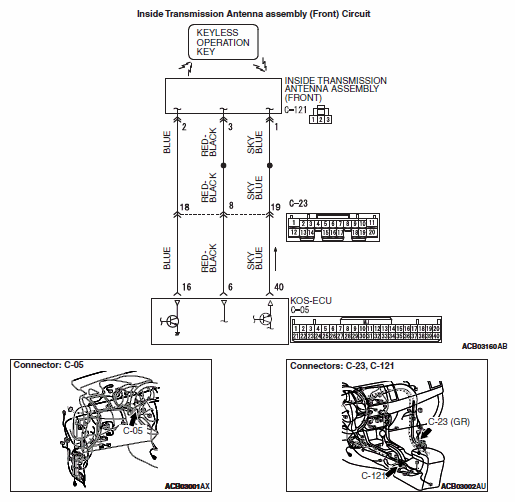

Fig 1: Inside Transmission Antenna Assembly (Front) Circuit Diagram
G00528547Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
