DTC B2101: IG SW Start POS. Circuit Low; DTC B2102: IG SW Start POS. Circuit High: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If DTC B2101 or B2102 is set in KOS-ECU, always diagnose the CAN bus lines.
  • Before replacing the ECU, ensure that the communication circuit is normal.

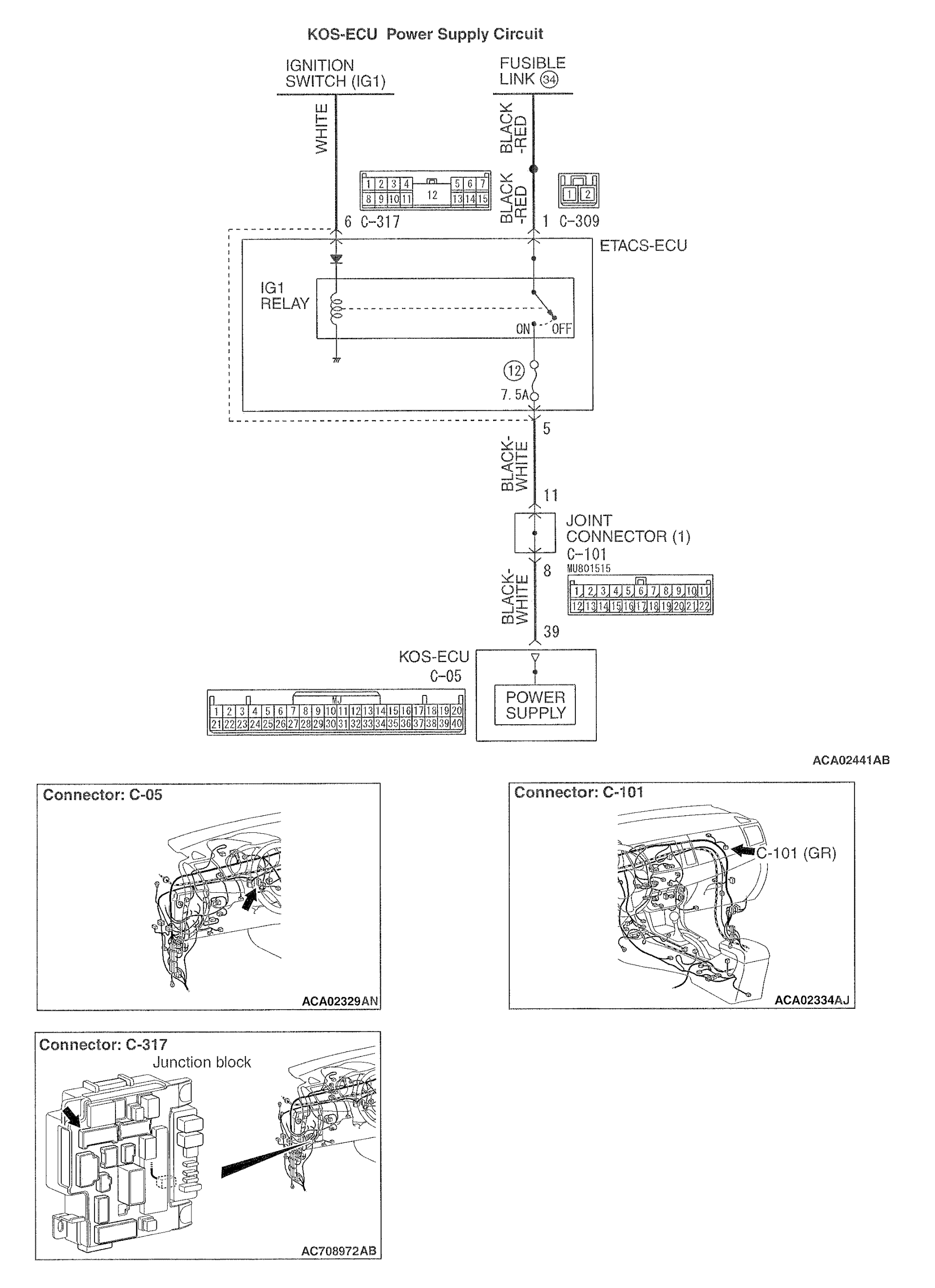

    Fig 1: KOS-ECU Power Supply Circuit Diagram
    G00505441Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
