Inspection Procedure 3: The SRS Warning Light Does Not Illuminate: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

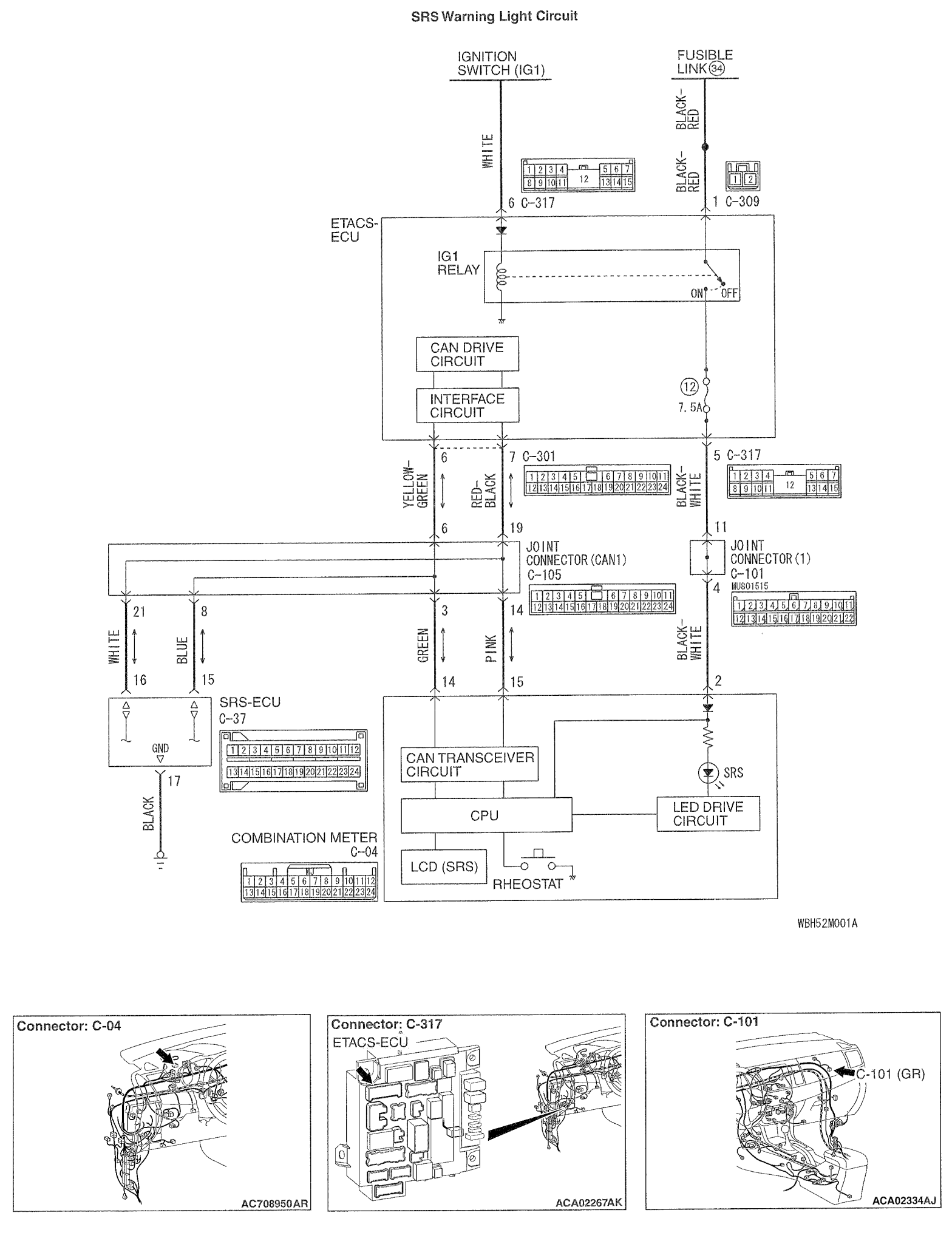

Fig 1: SRS Warning Light Circuit Diagram
G00505381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
