Inspection Procedure 2: Power Supply Circuit System: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

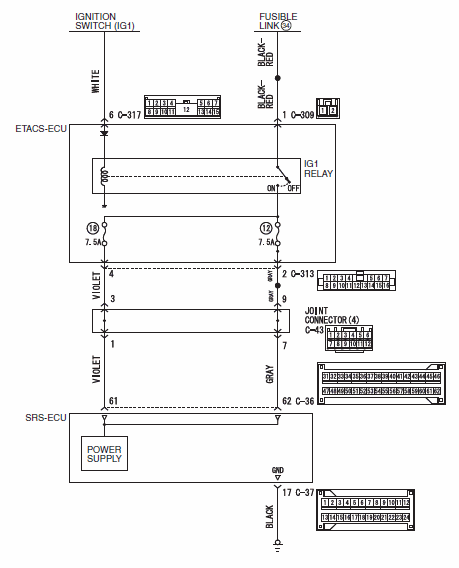

Fig 1: IG1 Power Supply Circuit Diagram
G00527053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: IG1 Power Supply Circuit Diagram
G00527066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Locating Connector C-309 & C-313
G00527055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
