General Information: Schematic

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

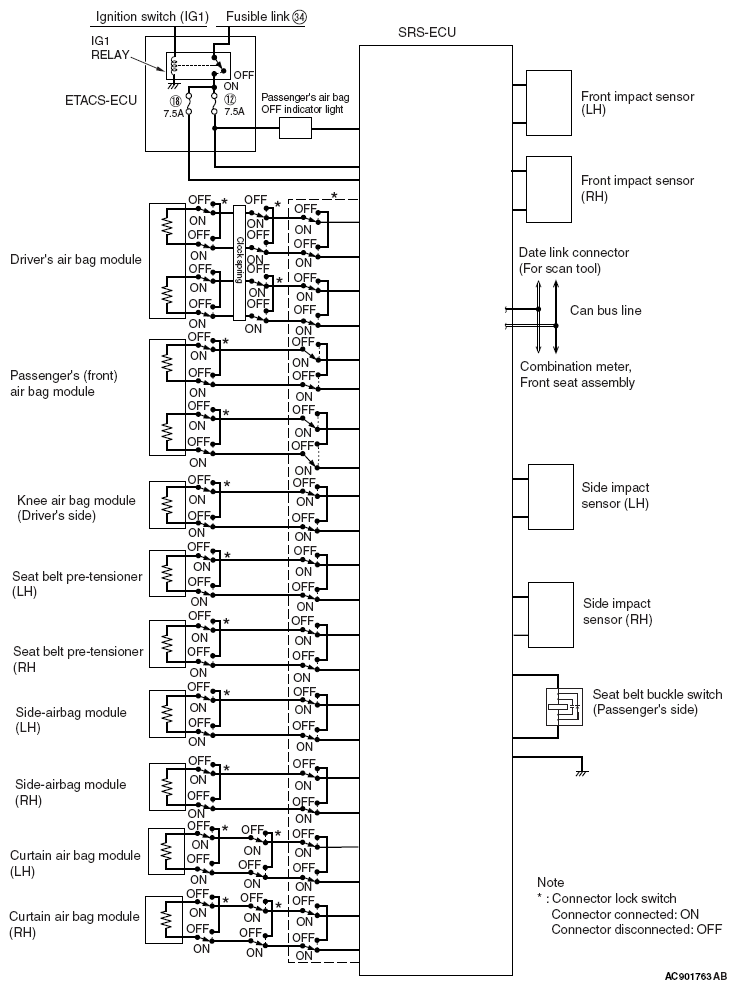

Fig 1: Supplemental Restraint System Schematic Diagram
G06675871Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
