Circuit Diagram

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instrument panel wiring harness and the floor wiring harness shown on SERVICE PRECAUTIONS  ): replace the wiring if necessary, after reading and following all precautions and procedures in this information.
  • Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (refer to SPECIAL TOOLS  ) and a digital multi-meter (refer to TROUBLESHOOTING STRATEGY  ).
CAUTION: Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS components to prevent the serious injury.

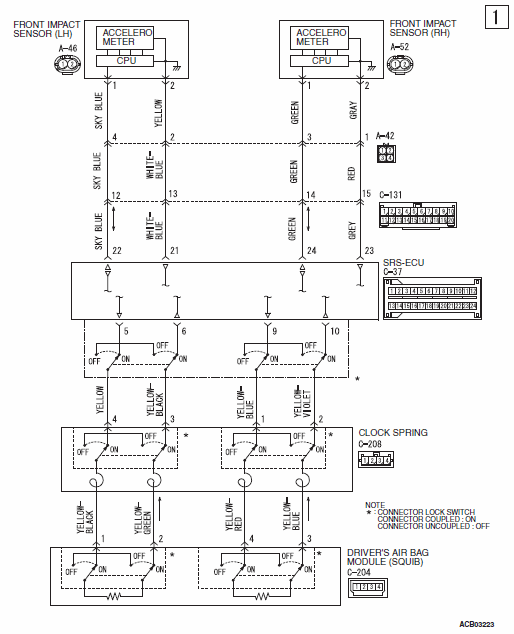

Fig 1: Supplemental Restraint System - Circuit Diagram (1 Of 9)
G00527041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

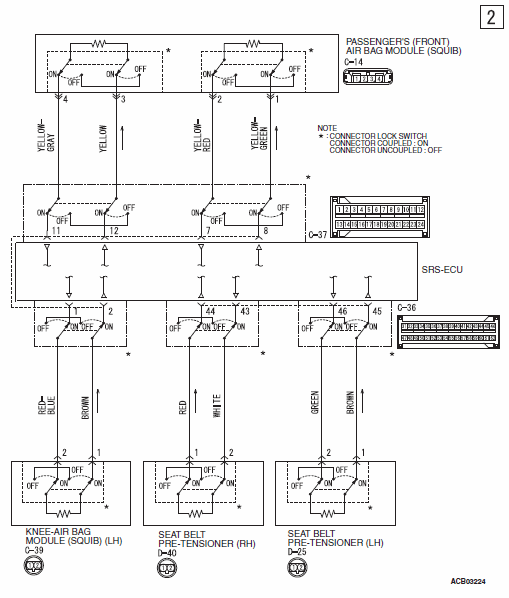

Fig 2: Supplemental Restraint System - Circuit Diagram (2 Of 9)
G00527042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

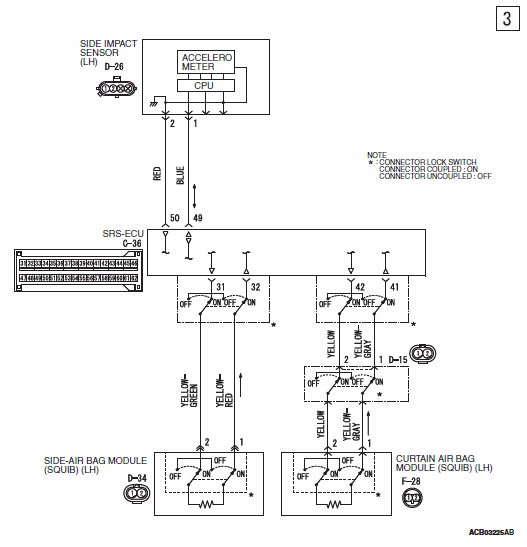

Fig 3: Supplemental Restraint System - Circuit Diagram (3 Of 9)
G00527043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 4: Supplemental Restraint System - Circuit Diagram (4 Of 9)
G06675878Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 5: Supplemental Restraint System - Circuit Diagram (5 Of 9)
G00527044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Supplemental Restraint System - Circuit Diagram (6 Of 9)
G00527045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Supplemental Restraint System - Circuit Diagram (7 Of 9)
G00527046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 8: Supplemental Restraint System - Circuit Diagram (8 Of 9)
G06675882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

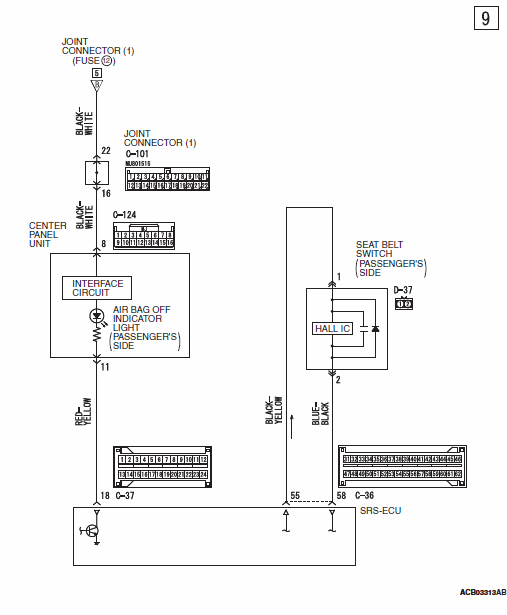

Fig 9: Supplemental Restraint System - Circuit Diagram (9 Of 9)
G00527047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
