Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Never attempt to disassemble or repair the curtain air bag modules. If faulty, replace it.
Do not drop the curtain air bag modules or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
Do not expose the curtain air bag modules to temperatures over 93°C (200°F).
After deployment of the air bag, replace the air bag module with a new one.
Wear gloves and safety glasses when handling air bags that have already deployed.
An undeployed curtain air bag module should only be disposed of in accordance with the procedures (Refer to AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES ).
When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle (Refer to ON-VEHICLE SERVICE ).

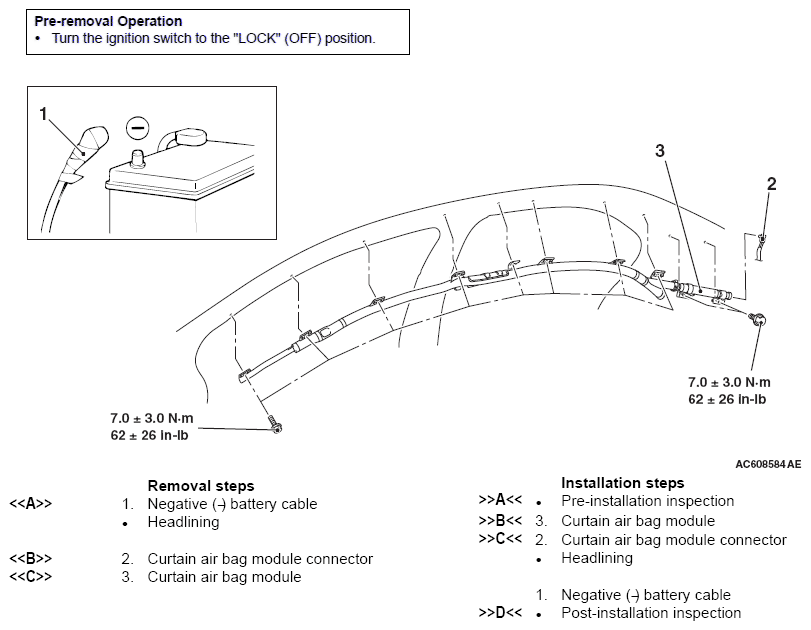

Fig 1: Curtain Air Bag Modules Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
