INSPECTION PROCEDURE 1: Power Windows do not work at All

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

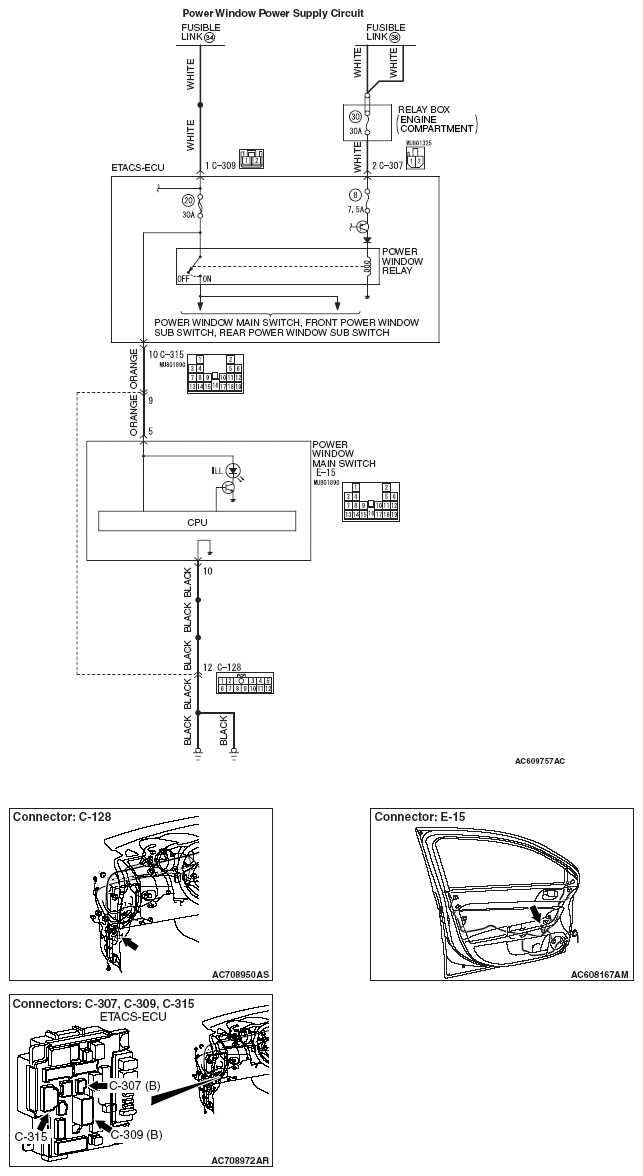

Fig 1: Power Window Power Supply Circuit Diagram
G05394884Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
