INSPECTION PROCEDURE 3: When the Parking Brake Lever is Released, the Brake Warning Light does not Turn Off: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

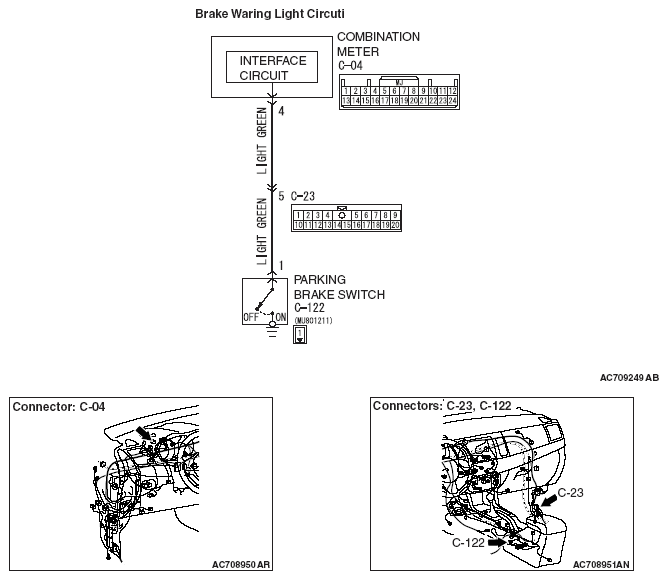

Fig 1: Brake Waring Light Circuit Diagram
G05394734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
