>> A << Vacuum Hose Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Align the mark as shown in the figure to assemble the vacuum hose.

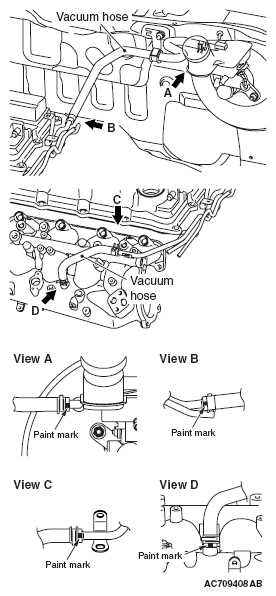

Fig 1: Locating Vacuum Hose
G05394590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
