<< B >> Steering Shaft Cover Removal

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clip (for securing the floor carpet), and turn back the floor carpet.
  2. Remove the clip (for securing the steering shaft cover), and then remove the steering shaft cover.

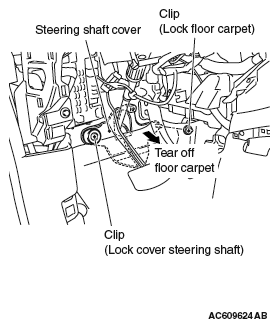

    Fig 1: Identifying Steering Shaft Cover
    G05394796Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
