>> B << Steering column bolt (connection of steering column shaft assembly and steering gear and linkage) installation
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

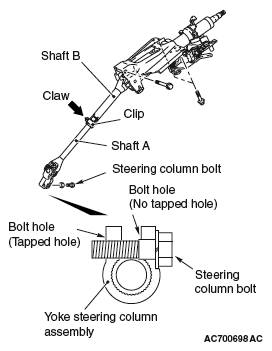

- While sliding shaft A from shaft B with the clip claw as shown in the figure being pinched, connect the steering column shaft assembly and the steering gear and linkage.
- Insert the steering column bolt from the no tapped bolt hole, and tighten it to the specified torque.
Tightening torque : 20 ± 5 N.m (15 ± 3 ft-lb)
