>> C << Wiper Arm And Blade Assembly Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

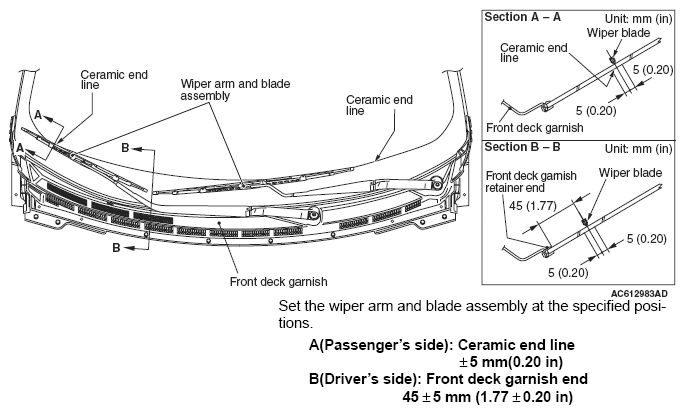

Fig 1: Wiper Arm And Blade Assembly Installation Procedure
G05396022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
