Inspection Procedure 1: Hands Free Cellular Phone System Does Not Work Normally: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.
Fig 1: Hands Free Module Power Supply Circuit Diagram
G05397107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

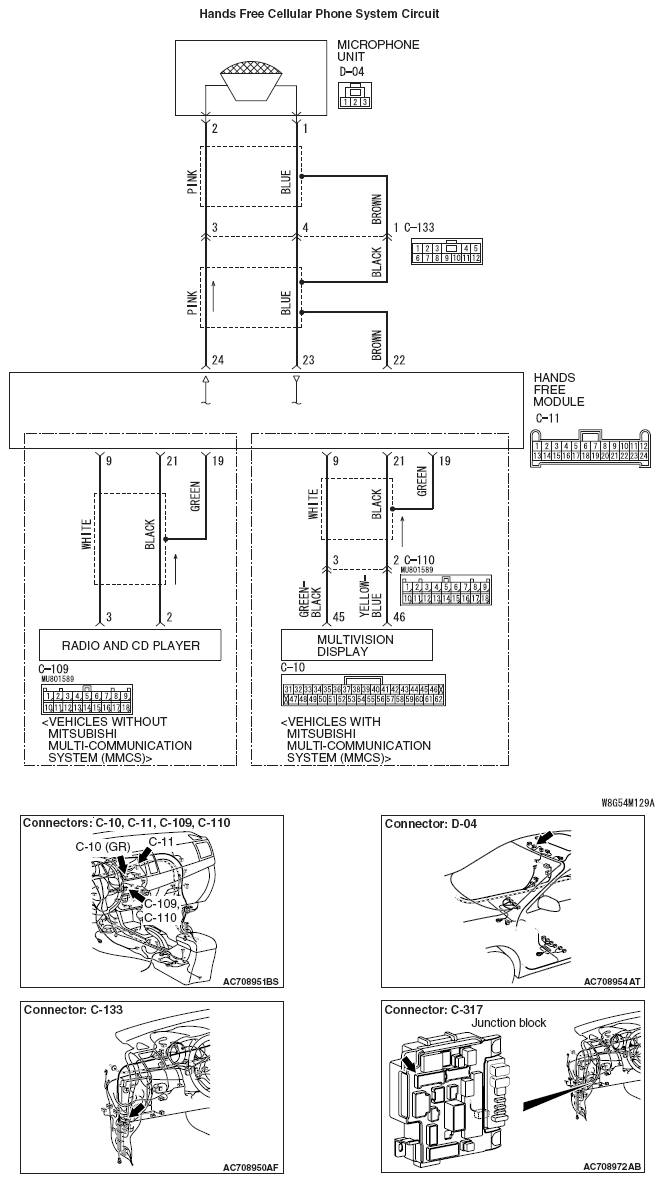

Fig 2: Hands Free Cellular Phone System Circuit Diagram
G05397108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
