DTC B16A1: Taillight (LH) Circuit Open (Open Circuit In Taillight (LH), Position Light (LH), Or License Plate Light); DTC B16A8: Taillight (LH) Circuit Short (Short Circuit In Taillight (LH), Position Light (LH), Or License Plate Light): Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

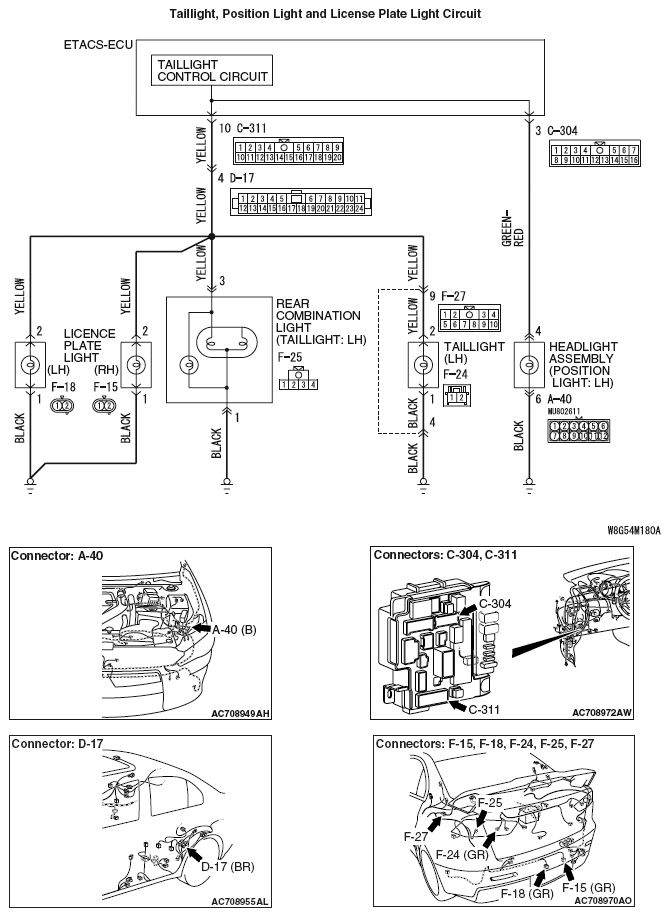

Fig 1: Taillight, Position Light And License Plate Light Circuit Diagram
G05396856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
