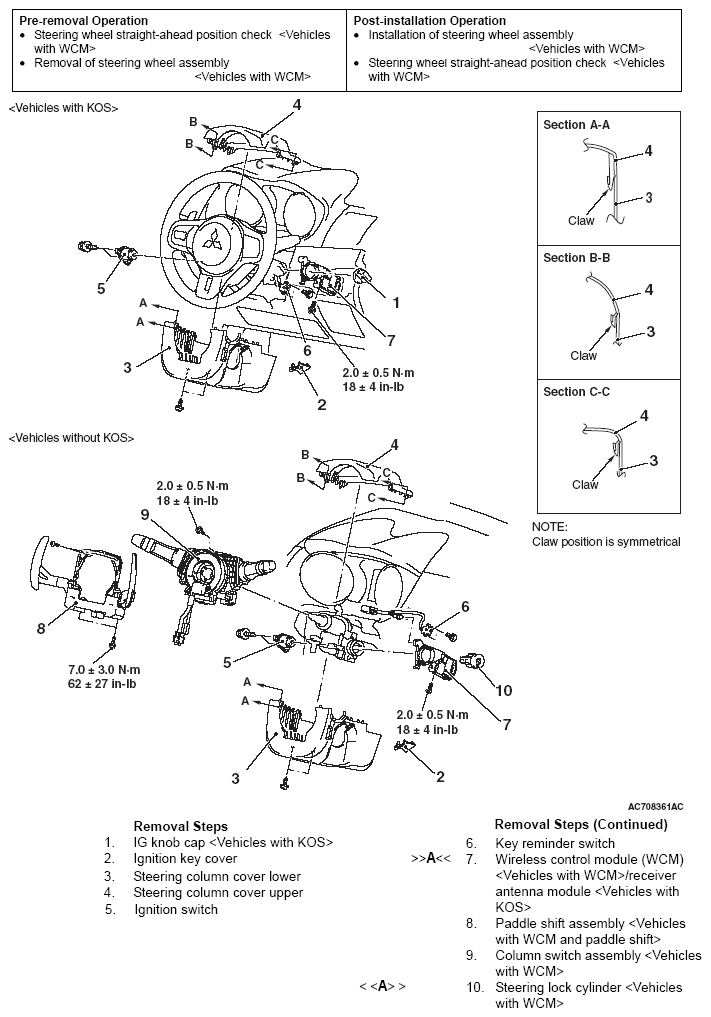

Removal And Installation
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before removing the steering wheel assembly, refer to
SERVICE PRECAUTIONS
and DRIVER'S AIR BAG MODULE AND CLOCK SPRING
< Vehicles with WCM >.
CAUTION:
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to
STEERING WHEEL SENSOR CALIBRATION
) < Vehicles with WCM and ASC >.
