Inspection Procedure 5: One Of The Headlights Does Not Illuminate: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

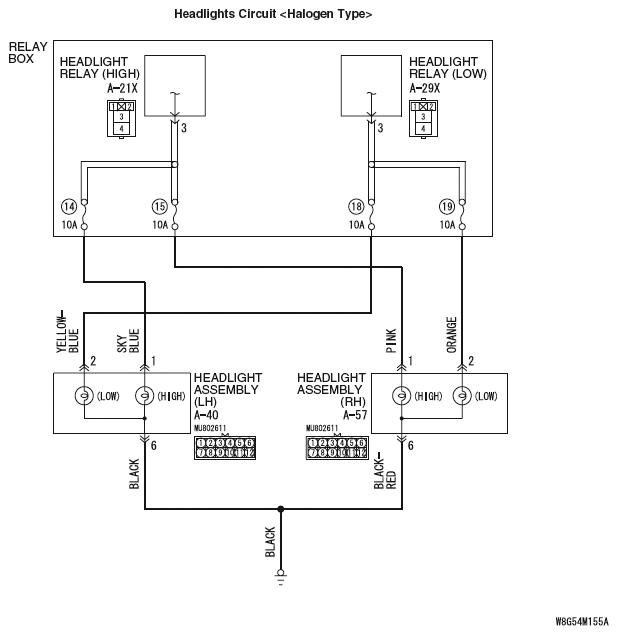

Fig 1: Headlights Circuit Diagram - (Halogen Type)
G05396801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Headlights Circuit Diagram - (Discharge Type)
G05396802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
