Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical <2.0L Non-Turbo> - Lancer >> Valve Stem Seal >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: *Remove and assemble the marked parts in each cylinder unit.

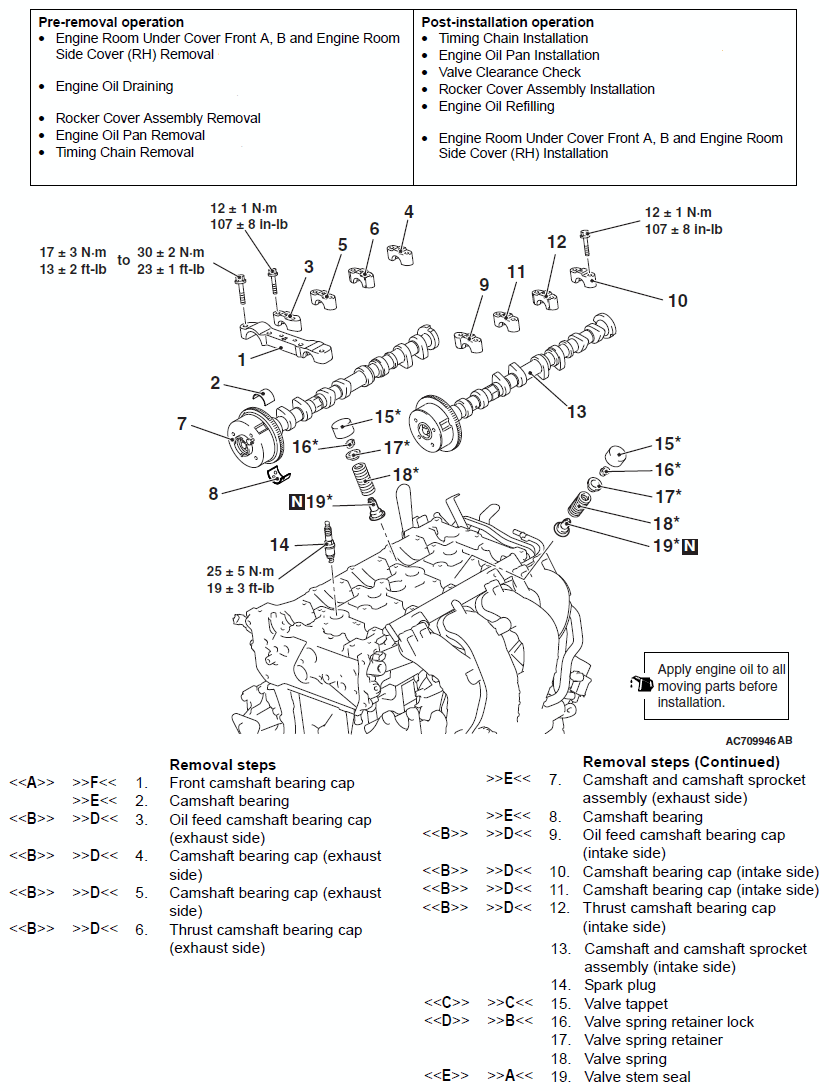

Fig 1: Valve Stem Seal Replacement Components With Torque Specifications
G06670860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
