>>D<< Thrust Camshaft Bearing Cap/Camshaft Bearing Cap/Oil Feeding Camshaft Bearing Cap Installation

  1. Install the camshaft bearing caps to the cylinder head.
    NOTE: Because the thrust camshaft bearing cap and camshaft bearing cap are the same in shape, check the cap number and additionally its symbol to identify the intake and exhaust sides for correct installation.
  2. Tighten each camshaft bearing cap mounting bolts to the specified torque in the order of number shown in the illustration in two or three steps.

    Tightening torque: 12 ± 1 N.m (107 ± 8 in-lb)

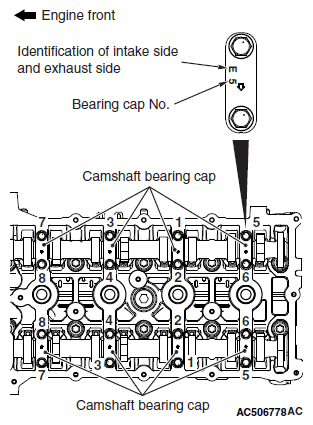

    Fig 1: Identifying Camshaft Bearing Cap Mounting Bolts Tightening Sequence
    G06670870Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
