>>B<< Valve Spring Retainer Lock Installation

In the same manner as removal, use special tool MD998772 (with special tools MB992090 and MB992089 attached) to compress the valve spring, and install the valve spring retainer lock.

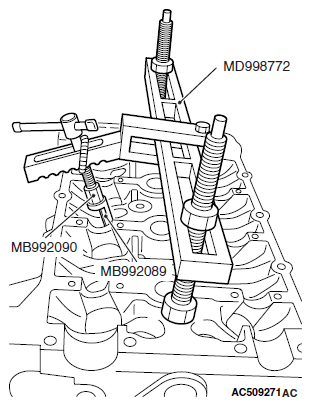

Fig 1: Compressing Valve Spring
G06670868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
