Special Tools

SPECIAL TOOLS SPECIFICATION

Tool Tool number and name Supersession Application
G06670788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992080
Belt tension meter set
  1. MB9912081 Belt tension meter
  2. MB992082 Mic assembly
 Tool not available Drive belt tension (frequency) measurement

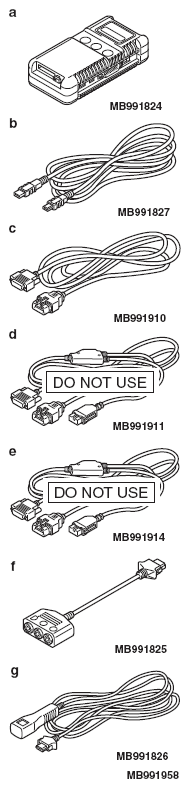

G06670789Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991958
Scan tool (M.U.T.-III sub assembly)
  1. MB991824 Vehicle communication interface (V.C.I.)
  2. MB991827 M.U.T.-III USB cable
  3. MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. MB991914 M.U.T.-III main harness C (for Chrysler models only)
  6. MB991825 M.U.T.-III adapter harness
  7. MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
  • Ignition timing check
  • Curb idle speed check
  • Idle mixture check
  • Erasing the diagnostic trouble code
G06670790Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992278
Belt tension release wrench		   Auto-tensioner tension release
G06670791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990767
Front hub and flange yoke holder		 MB990767-01 Holding the crankshaft pulle
G06670792Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998719
Pin		 MIT308239
G06670793Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992103
Chain tension release bar		 - Camshaft and camshaft sprocket assembly (exhaust side) removal
G06670794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998772
Valve spring compressor		 General service tool Valve spring compression
G06670795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992090
Retainer holder attachment		 -
G06670796Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992089
Retainer holder C		 -
G06670797Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992085
Valve stem seal pliers		 - Valve stem seal removal
G06670798Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998737
Valve stem seal installer		 MD998737-01 Valve stem seal press-fitting
G06670799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998727
Oil pan FIPG cutter		 MD998727-01 Engine oil pan removal
G06670800Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991883
Flywheel stopper		 General service tool Supporting the flywheel <M/T> or drive plate <CVT>
G06670801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998718
Crankshaft rear oil seal installer		 MD998718-01 Press-fitting the crankshaft rear oil seal
G06670802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991448
Bush remover and installer base		 MB991448-01 Press-fitting the crankshaft front oil seal
G06670803Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991454
Engine hanger balancer		 MZ203827-01
  • Supporting the engine and transaxle assembly during removal and installation of the timing chain
  • Supporting the engine assembly during removal and installation of the transaxle assembly
NOTE: Special tool MB991454 is a part of engine hanger attachment set MB991453.
G06670804Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991895
Engine hanger		 Tool not available
G06670805Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991928
Engine hanger
  1. MB991929 Joint (50) x 2
  2. MB991930 Joint (90) x 2
  3. MB991931 Joint (140) x 2
  4. MB991932 Foot (standard) x 4
  5. MB991933 Foot (short) x 2
  6. MB991934 Chain and hook assembly
 Tool not available
G06670806Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992201
Engine hanger plate		 - Transaxle assembly removal
