Removal And Installation: Notes

CAUTION: When the engine assembly replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE .)

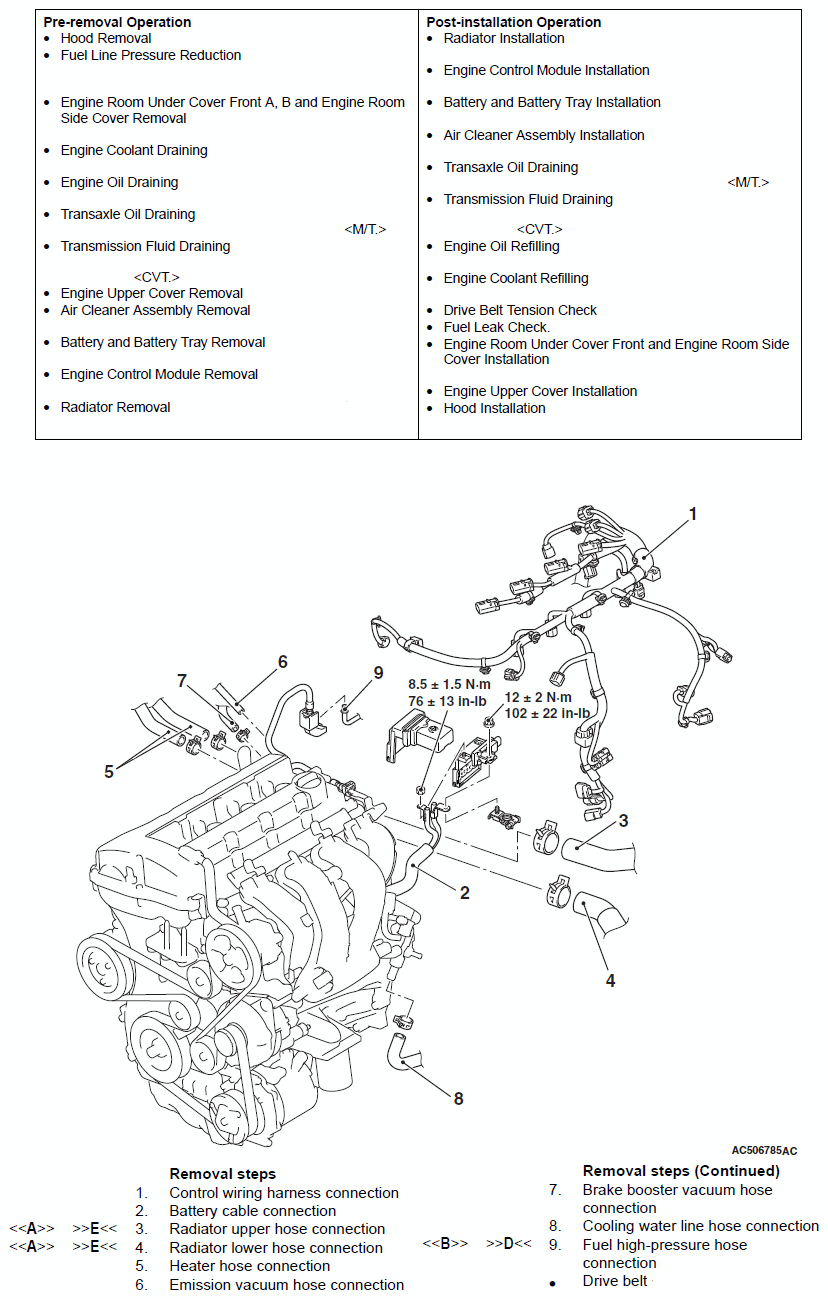

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 2)
G06670928Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

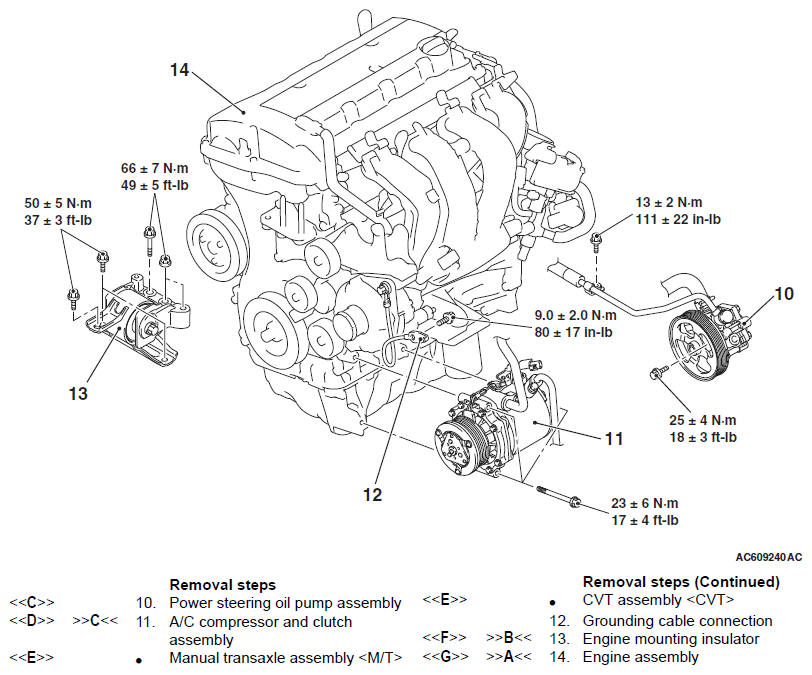

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 2)
G06670929Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
