>>B<< Engine Mounting Insulator Installation

CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.
  1. Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mounting insulator while adjusting the position of the engine assembly.
  2. Remove special tool MB991454.
  3. Install special tool MB992201 and MB991928 or MB991895 which is used during installation of transaxle assembly to hold the engine assembly (Refer to TRANSAXLE ASSEMBLY ) <M/T> or (Refer to TRANSAXLE ASSEMBLY ) <CVT.>

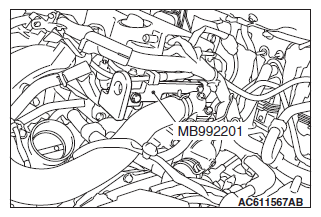

    Fig 1: Identifying Special Tool MB992201
    G06670939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

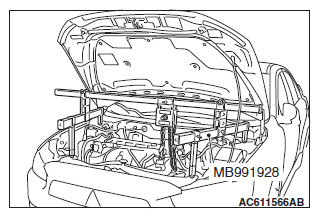

    Fig 2: Supporting Engine Assembly With MB991928
    G06670940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

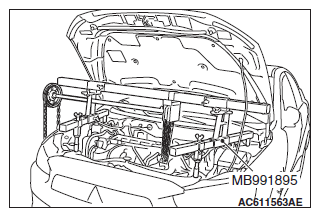

    Fig 3: Supporting Engine Assembly With MB991895
    G06670941Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
