>>A<< Engine Assembly Installation

Install the engine assembly, being careful not to pinch the cables, hoses, or wiring harness connectors.

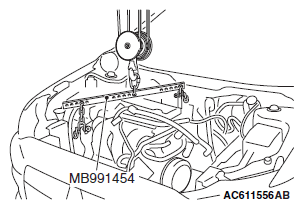

Fig 1: Installing Engine Assembly
G06670938Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
