Removal And Installation: Notes

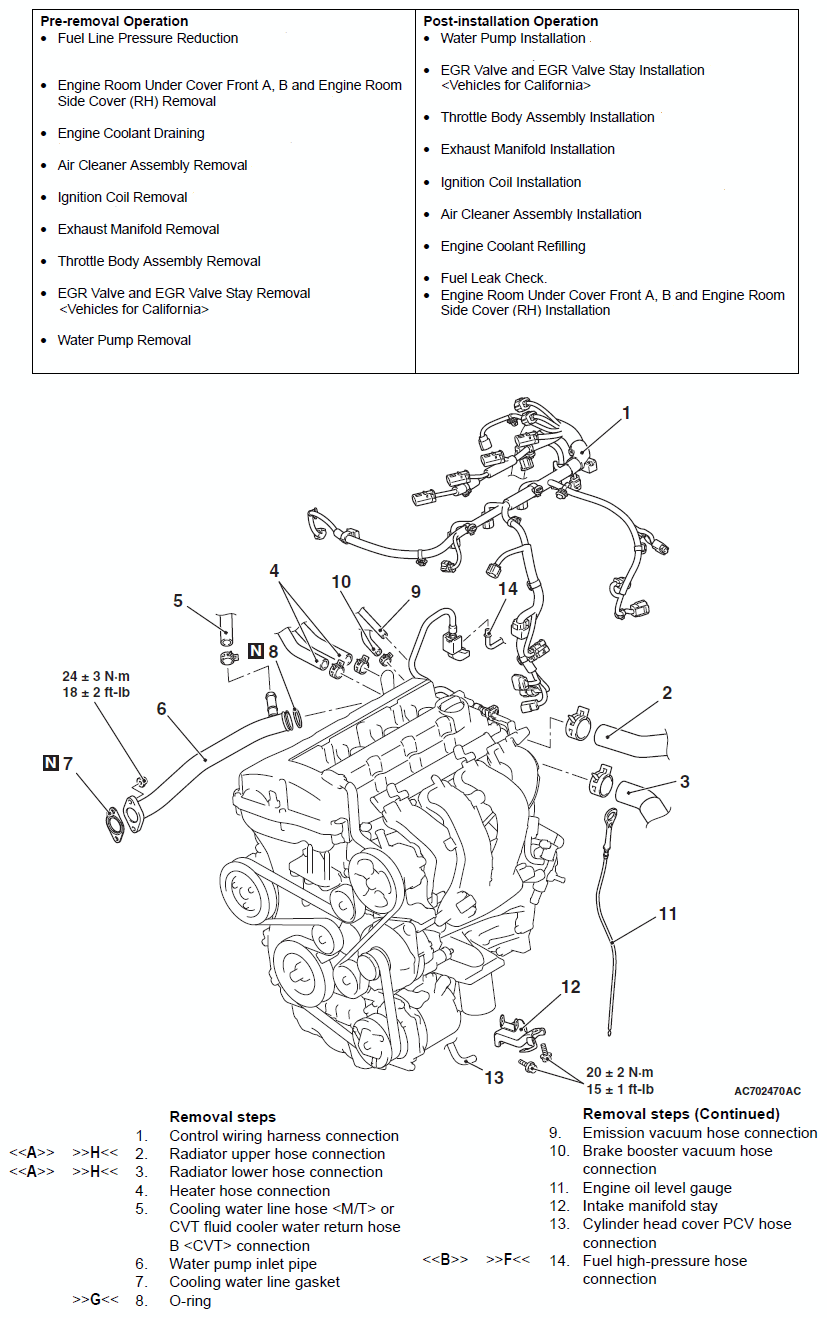

Fig 1: Cylinder Head Replacement Components With Torque Specifications (1 Of 2)
G06670888Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

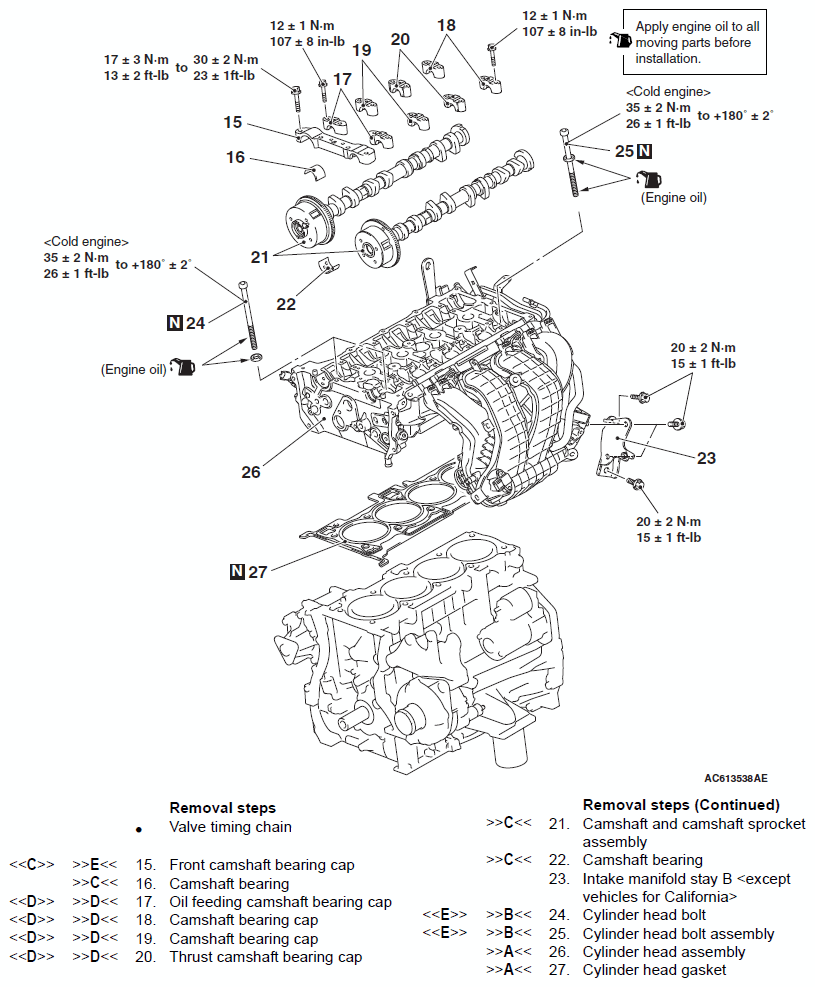

Fig 2: Cylinder Head Replacement Components With Torque Specifications (2 Of 2)
G06670889Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
