>>E<< Front Camshaft Bearing Cap Installation

CAUTION: When the mounting bolts are tightened with the front camshaft bearing cap tilted, the front camshaft bearing cap is damaged. Install the front camshaft bearing cap properly to the cylinder head and camshaft.
  1. Install the front camshaft bearing cap to the cylinder head, and temporarily tighten the front camshaft bearing cap mounting bolts to the specified torque in the order of the figure (1.)

    Tightening torque: 17 ± 3 N.m (13 ± 2 ft-lb)

  2. Tighten the front camshaft bearing cap mounting bolts again to the specified torque in the order of the figure (2.)

    Tightening torque: 30 ± 2 N.m (23 ± 1 ft-lb)

    Fig 1: Identifying Front Camshaft Bearing Cap
    G06670905Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install special tool MB991454, MB991928 or MB991895 which was installed for supporting the engine and transaxle assembly when the timing chain was removed (Refer to <<E>> TIMING CHAIN TENSIONER REMOVAL  .)
  4. Remove the garage jack which supports the engine and transaxle assembly.
  5. Remove the engine oil pan installed temporarily.

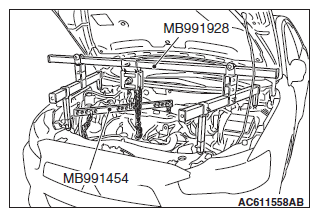

    Fig 2: Supporting Engine And Transaxle Assembly
    G06670906Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

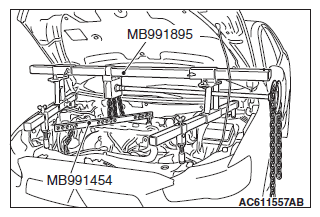

    Fig 3: Lifting Transaxle Assembly
    G06670907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
