>>B<< Cylinder Head Bolt Assembly/Cylinder Head Bolt Installation

Replace cylinder head bolts with a new ones.
For two cylinder head bolts of the timing chain side, the washer can be removed from the bolt. Install the washer, with its sag facing upward, to the cylinder head bolts.
Apply a small amount of engine oil to the cylinder head bolt threads and the washers.
Tighten the cylinder head bolts by the following procedure (plastic region angular tightening method.)
1. Tighten the cylinder head bolts to the specified torque in the order of number shown in the illustration.
  Tightening torque: 35 ± 2 N.m (26 ± 1 ft-lb)
  CAUTION:
  - The cylinder head bolt is not tightened sufficiently if the tightening angle is less than a 180 degree angle.
  - If the tightening angle exceeds the standard specification, remove the cylinder head bolt and repeat the installation steps from Step 1.
2. Put a paint mark on the cylinder head bolt head and cylinder head, tighten to 180 ± 2 degree angle in the order of number shown in the illustration, and check that the paint mark on the cylinder head bolt head aligns with the paint mark on the cylinder head.

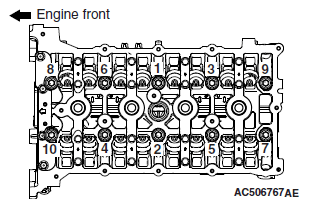

  Fig 1: Identifying Cylinder Head Bolts Tightening Sequence
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

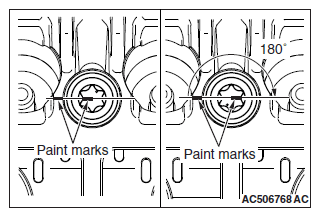

  Fig 2: Identifying Cylinder Head Bolts Tightening Angle
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
