>>A<< Cylinder Head Gasket/Cylinder Head Assembly Installation

CAUTION: Do not allow any foreign materials get into the coolant passages, oil passages and cylinder.
  1. Remove the sealant and grease on the top surface of cylinder block and on the bottom surface of the cylinder head. Then, degrease the sealant application surface.

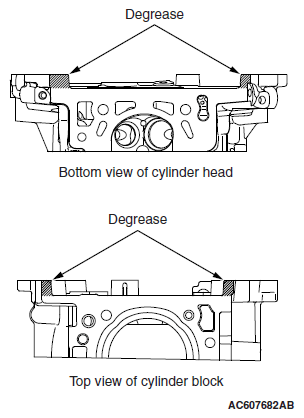

    Fig 1: Identifying Sealant Application Area
    G06670898Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Apply the sealant to the top surface of cylinder block as shown in the illustration.

    Specified sealant: Three bond 1217G or equivalent

  3. Install the cylinder head gasket to the cylinder block.
    NOTE: When the cylinder head gasket is installed to the cylinder block, check that the sealant is securely applied to the bead line of the cylinder head gasket.
    NOTE: Install the cylinder head gasket immediately after applying sealant.
  4. Apply the sealant to the top surface of cylinder head gasket as shown in the illustration.

    Specified sealant: Three bond 1217G or equivalent

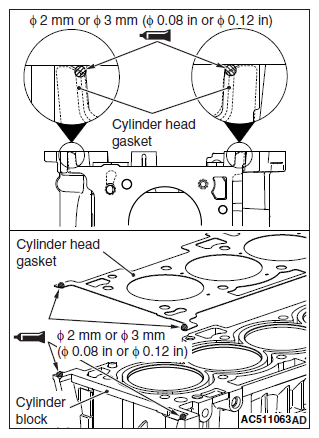

    Fig 2: Applying Sealant To Top Surface Of Cylinder Head Gasket
    G06670899Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine.
  5. Install the cylinder head assembly to the cylinder block.
    NOTE: Install the cylinder head assembly immediately after applying sealant.
