>>A<< Crankshaft Rear Oil Seal Installation

  1. Apply a small amount of engine oil to the entire inner diameter of the crankshaft rear oil seal lip.
  2. Using special tool MD998718, press in the crankshaft rear oil seal up to the cylinder block end surface.

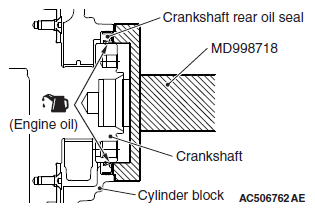

    Fig 1: Pressing Crankshaft Rear Oil Seal Up To Cylinder Block Surface
    G06670883Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
