A Operation check

  1. Install the hand vacuum pump to the nipple "A" of solenoid.
  2. Use the jumper wire to connect the solenoid terminal with the battery terminal.
  3. Disconnecting the jumper wire at the negative (-) battery side, apply the vacuum pressure. Check the airtightness.
    JUMPER WIRE SPECIFICATION

    Jumper wire Nipple "B" state Normal state
    Connected Opened Negative pressure leaks
    Closed Negative pressure maintained
    Disconnected Opened Negative pressure maintained

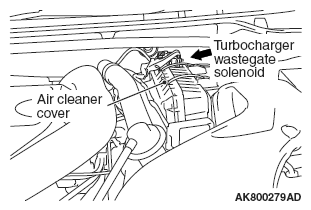

    Fig 1: Identifying Turbocharger Wastegate Solenoid And Air Cleaner Cover
    G06671808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Disconnecting Jumper Wire At Negative Battery Side
    G06671809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
