Turbocharger WASTEGATE Actuator Check

  1. Connect a hand vacuum pump (pressure-application type) to nipple.
    CAUTION: In order to avoid damage to the diaphragm, do not apply a pressure of 94 kPa (13.6 psi) or higher.
  2. While gradually applying pressure, check the pressure that begins to activate (approximately 1 mm stroke) the turbocharger wastegate actuator rod.

    Standard value: 78 - 82 kPa (11.4 - 11.8 psi)

  3. If there is a significant deviation from the standard value, check the actuator or the turbocharger wastegate regulating valve: replace if necessary.

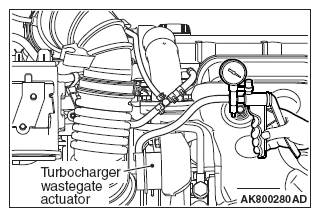

    Fig 1: Connecting Hand Vacuum Pump To Nipple
    G06671805Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
