Removal And Installation (2.0L Engine Turbo): Notes

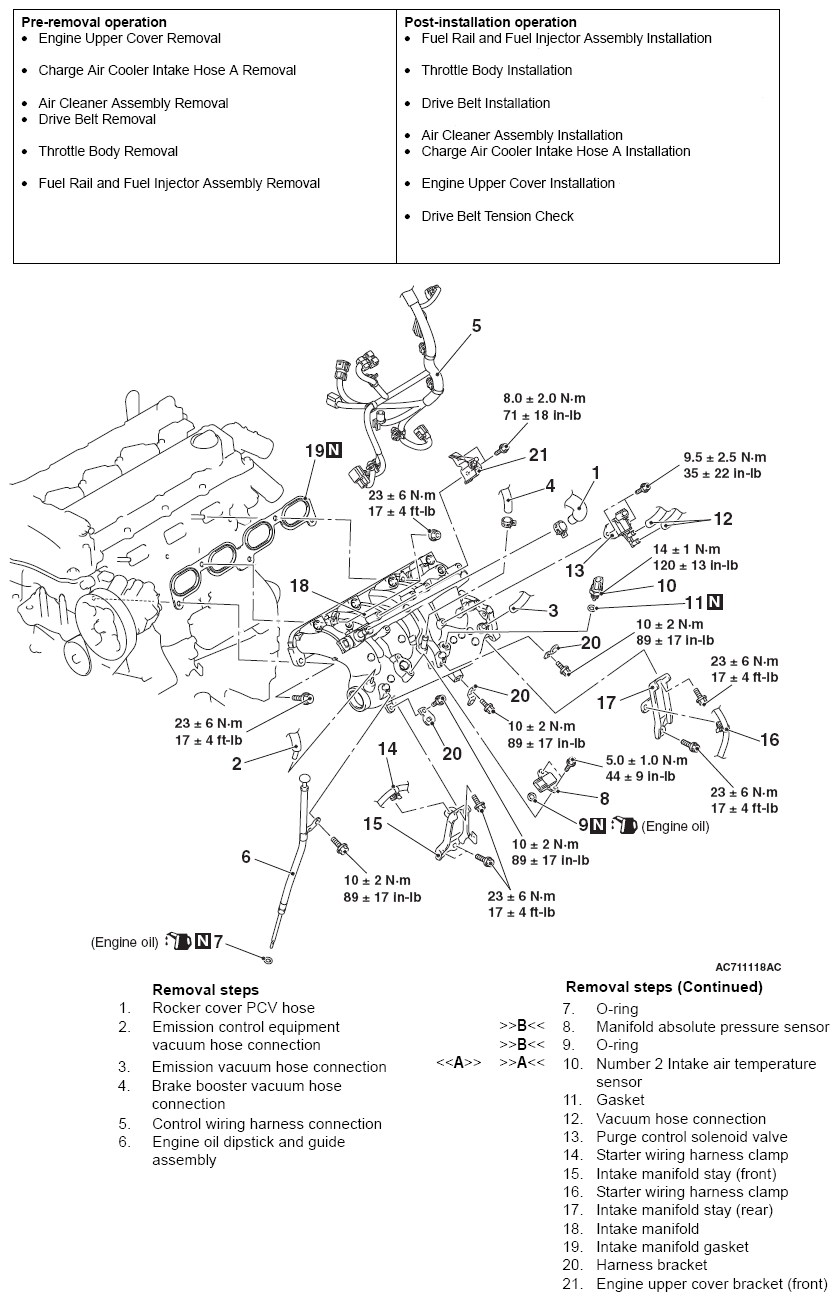

Fig 1: Intake And Exhaust Replacement Components With Torque Specifications (2.0L Engine Turbo)
G06671819Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
