Removal And Installation: Notes

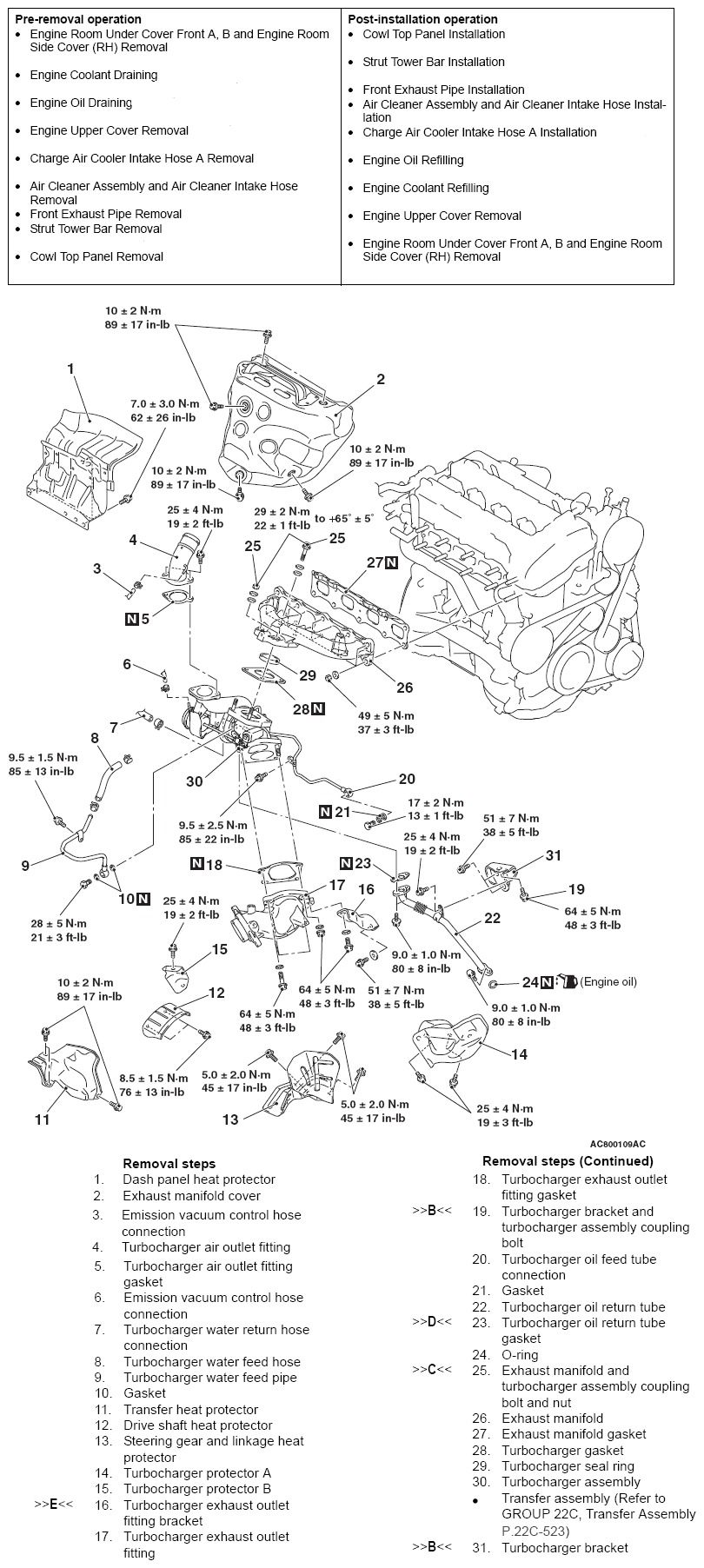

Fig 1: Exhaust Manifold And Turbocharger Replacement Components With Torque Specifications (1 Of 2)
G06671824Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

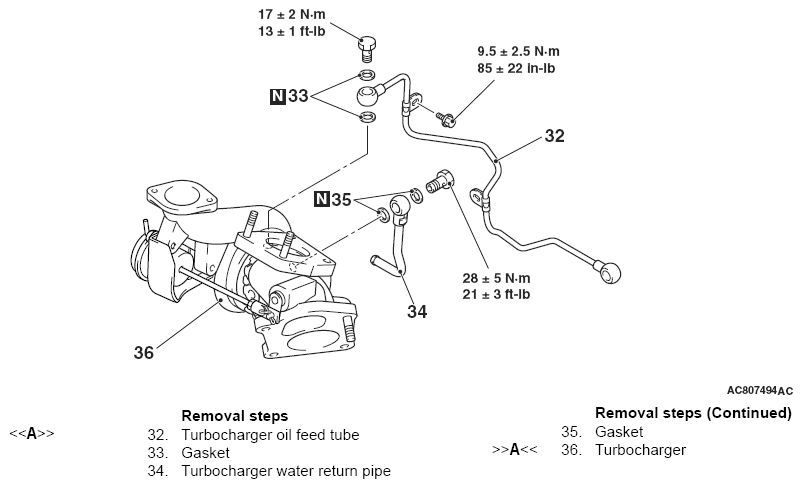

Fig 2: Exhaust Manifold And Turbocharger Replacement Components With Torque Specifications (2 Of 2)
G06671825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
