>>B<< Turbocharger Bracket/Turbocharger Bracket And Turbocharger Assembly Coupling Bolt Installation

  1. Check that the turbocharger bracket is in close contact with the turbocharger assembly and with the cylinder block. Then, temporarily tighten the turbocharger bracket mounting bolts, the turbocharger bracket and the turbocharger assembly coupling bolts.
  2. Tighten the turbocharger bracket mounting bolts to the specified torque.

    Tightening torque: 51 ± 7 N.m (38 ± 5 ft-lb)

  3. Tighten the turbocharger bracket and turbocharger assembly coupling bolt to the specified torque.

    Tightening torque: 64 ± 5 N.m (48 ± 3 ft-lb)

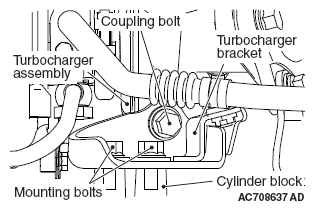

    Fig 1: Identifying Turbocharger Bracket, Coupling Bolt And Turbocharger Assembly
    G06671826Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
