Removal And Installation: Notes

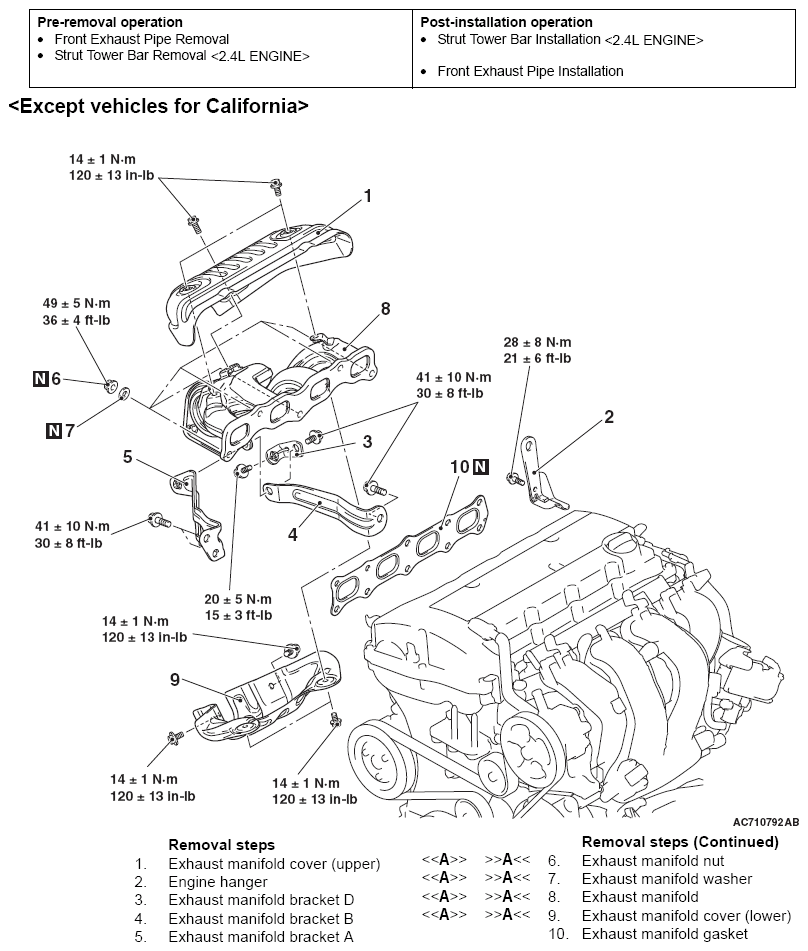

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (1 Of 2)
G06671822Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

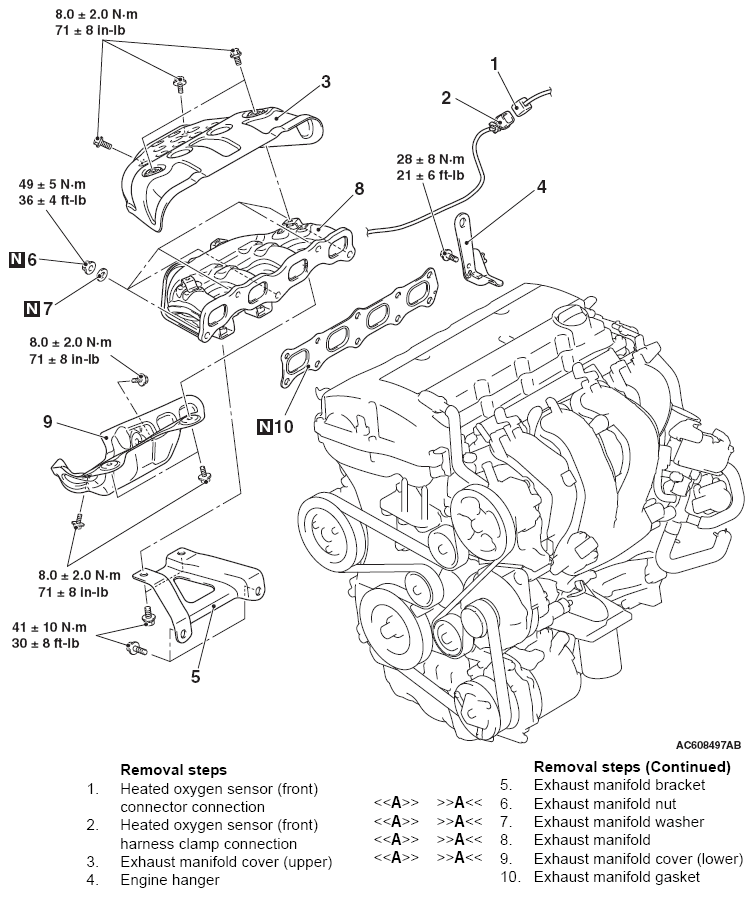

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications (2 Of 2)
G06671823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
