Removal And Installation: Notes

CAUTION:
  • Degrease the air hose and air pipe by isopropyl alcohol, parts cleaner (MZ100387) or equivalent.
  • As for the parts cleaner, use the petroleum cleaner whose major component is aliphatic hydrocarbon.
  • Working area should be airy and kept from flame.

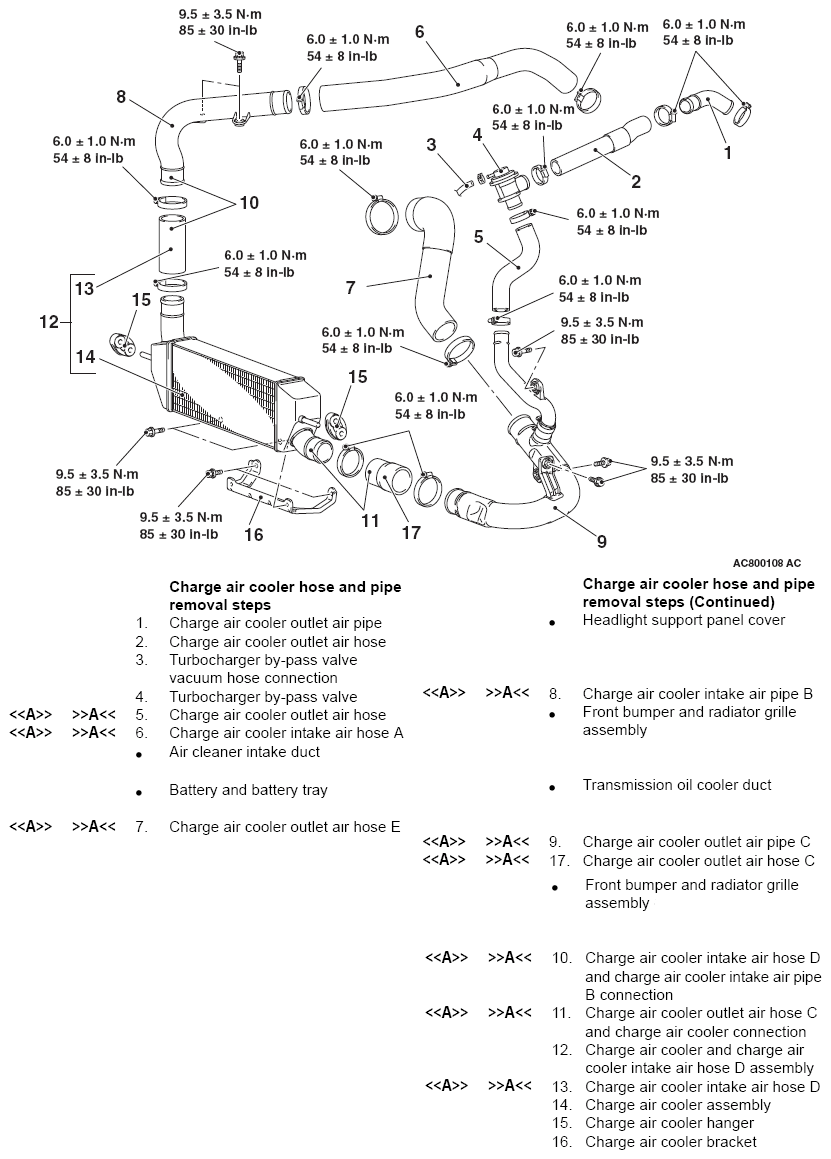

    Fig 1: Charge Air Cooler Replacement Components With Torque Specifications
    G06671814Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
