Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Intake System And Exhaust System - Lancer >> Air Cleaner >> Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine) >> Notes

Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

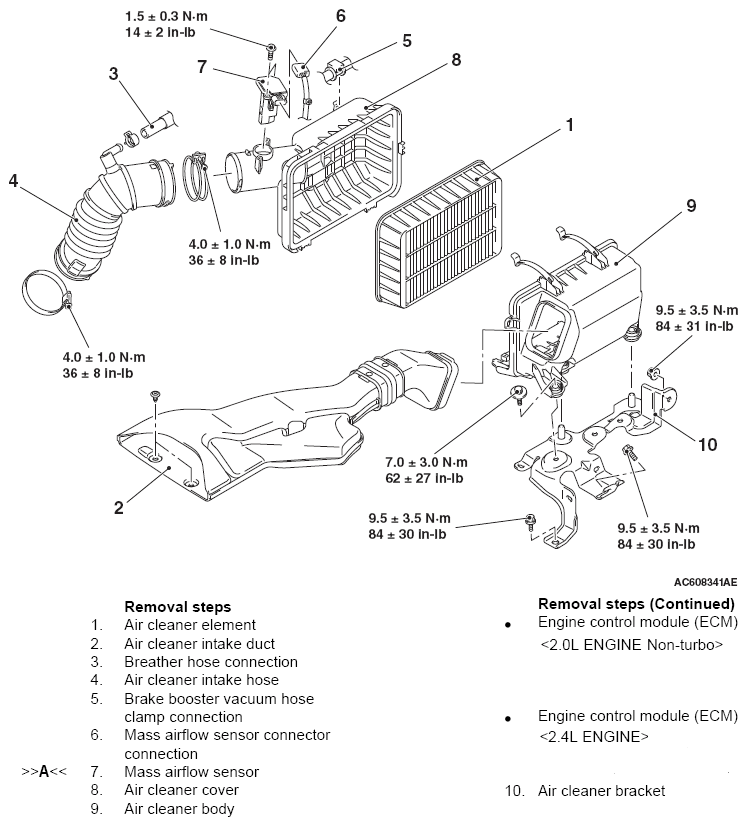

Fig 1: Air Cleaner Replacement Components With Torque Specifications

G06671812

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
